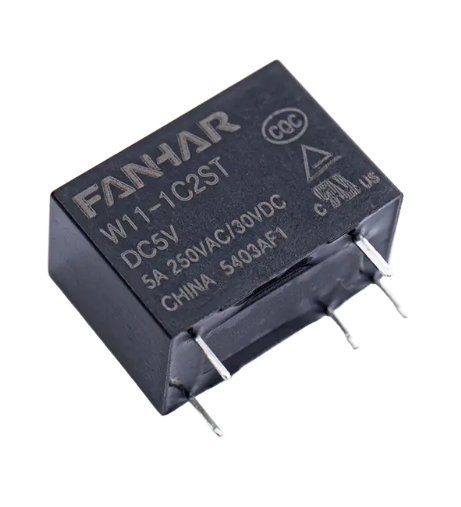

W11 5A 10A Power Relay UL TUV CQC Compliant
Price:
W11 Power Relay 10A Switching Capability is a high-performance electromagnetic relay designed for applications that require high current switching capability. With a switching current capability of 10A, the relay is suitable for a variety of industrial, automation, and home appliance scenarios. Its DC control signal is 12V, which ensures efficient control at low power consumption. The W11 Power Relay 10A adopts a compact design to save PCB space while providing reliable electrical isolation to ensure safe isolation between the control circuit and the load circuit. Its coil power is only 450 mW (200 mW for the sensitive version), which reduces energy consumption while maintaining high efficiency. In addition, the relay supports two installation methods, through-hole (THT) and surface mount (SMT), to meet different design requirements. The W11 Power Relay 10A has extremely high reliability and can operate stably in harsh environments. Its insulation strength reaches 1000Vrms, meets the FCC Part 68 standard, and complies with international Safety certification requirements such as UL and VDE. The product has also passed the RoHS environmental certification and complies with the requirements of European Directives 2002/50/EC (ELV) and 2002/95/EC (ROHS), reflecting the importance of environmental protection. With its excellent performance, flexible design options, and reliable quality, W11 Power Relay 10A has become an ideal choice for industrial automation, home appliances, and automotive electronics. Whether it is high current switching or complex circuit control, W11 Power Relay 10A can provide a stable and reliable solution.
Features：
10A switching capability
Contact arrangement:1A､1C
Provide high-sensitivity type of products, coil power consumption is 200 mW
Breakdown voltage (between coil and contacts): 5 kV
Creepage distance and air distance are greater than 10 mm
We can provide the product with an ambient temperature is 105℃
UL insulation system: Class F
Environmentally friendly product(RoHS compliant)
Outline Dimensions:(18.6×10.3×13.0)mm
Main application: Industrial control, Smart home, 5G communication power
Features：
10A switching capability
Contact arrangement:1A､1C
Provide high-sensitivity type of products, coil power consumption is 200 mW
Breakdown voltage (between coil and contacts): 5 kV
Creepage distance and air distance are greater than 10 mm
We can provide the product with an ambient temperature is 105℃
UL insulation system: Class F
Environmentally friendly product(RoHS compliant)
Outline Dimensions:(18.6×10.3×13.0)mm
Main application: Industrial control, Smart home, 5G communication power
