Electric Servo Thermal Press Forming Machine
Price:

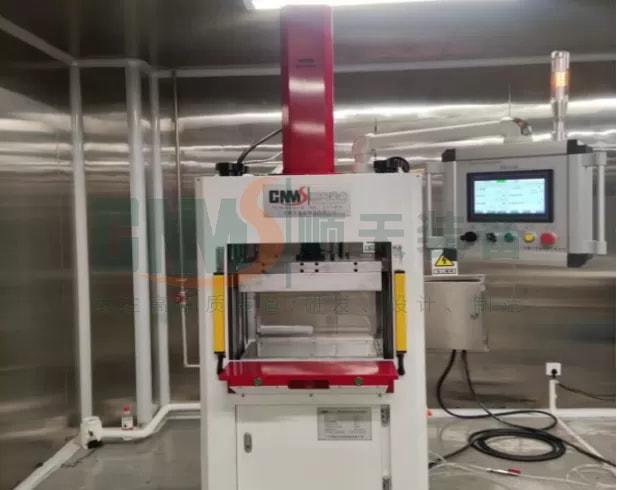

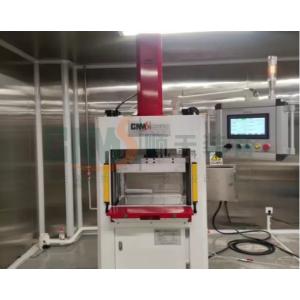

Electric Servo Thermal Press Forming Machine
An Electric Servo Thermal Press Forming Machine is an advanced hot forming system that combines precision servo-driven motion control with programmable heating technology to shape thermoplastic materials, composite sheets, carbon fiber laminates, and engineered materials under controlled temperature and pressure conditions. Compared with traditional hydraulic presses, servo thermal forming machines offer higher positioning accuracy, better energy efficiency, cleaner operation, and improved process repeatability.
These machines are widely used in automotive lightweighting, aerospace composites, electronic insulation materials, medical products, battery components, consumer goods, and industrial manufacturing applications.
An Electric Servo Thermal Press Forming Machine uses servo motors and ball screw or servo actuator systems to generate precise pressing force while heated platens soften the material to the required forming temperature. The machine then applies controlled pressure to shape the material according to the mold design.
Electric Servo Thermal Press Forming Machine Applications
● Precision Press-Fitting: Motor stator/rotor insertion, bearing pressing, pin fitting
● Stamping Forming: Metal sheet stamping, plastic part thermal pressing and shaping
● Electronics Assembly: 3C casing bonding, FPC thermal pressing, camera module assembly
● Medical/Automotive: Precision catheter welding, sensor packaging, interior part pressing
Key Component Analysis
1. Servo Electric Cylinder: Delivers precise and stable force output with fast response, without the lag of hydraulic systems.
2. Force/Pressure Sensor: Collects real-time pressure data for closed-loop control.
3. Insulation Plate: Effectively isolates high temperatures to protect the machine structure and operator.
4. Water Cooling Plate: Rapidly dissipates excess heat to stabilize mold temperature and improve molding quality.
5. Heating Plate: Utilizes high-quality heating tubes for uniform temperature rise and long service life.
Electric Servo Thermal Press Forming Machine Advantages
1. High-Precision Control
Achieves exceptional temperature accuracy with minimal fluctuation, ensuring consistent processing quality. The pressure control system, driven by a servo mechanism and guided by oil-free bushings, maintains high parallelism between the upper and lower heating plates, meeting stringent process requirements for both force and position.
2. Fast Response and High Throughput
The servo system delivers rapid dynamic response, quickly reaching preset temperature and pressure levels. This effectively reduces auxiliary and heating time, significantly boosting production throughput.
3. Flexible Programming and Intuitive Operation
Supports flexible programming for complex thermal pressing processes. The touchscreen HMI displays real-time key parameters such as force, temperature, dwell time, and vacuum level, making it adaptable to various materials and processes while enabling quick changeovers.
4. High Consistency and Low Defect Rate
Precise and stable control over temperature and pressure ensures consistent processing conditions across batches, resulting in excellent product repeatability and a significant reduction in defect rates caused by fluctuations.
5. Energy Efficiency and Comprehensive Safety
The servo-driven hydraulic system operates with low noise and provides energy on demand, delivering significant energy savings. Its enclosed dust-proof structure extends the lifespan of core components. Multiple safety features—including safety door locks, emergency stop switches, and overpressure/overtemperature alarms—ensure both operational efficiency and personnel protection.
If you want to learn more, please visit our website.
An Electric Servo Thermal Press Forming Machine is an advanced hot forming system that combines precision servo-driven motion control with programmable heating technology to shape thermoplastic materials, composite sheets, carbon fiber laminates, and engineered materials under controlled temperature and pressure conditions. Compared with traditional hydraulic presses, servo thermal forming machines offer higher positioning accuracy, better energy efficiency, cleaner operation, and improved process repeatability.
These machines are widely used in automotive lightweighting, aerospace composites, electronic insulation materials, medical products, battery components, consumer goods, and industrial manufacturing applications.
An Electric Servo Thermal Press Forming Machine uses servo motors and ball screw or servo actuator systems to generate precise pressing force while heated platens soften the material to the required forming temperature. The machine then applies controlled pressure to shape the material according to the mold design.
Electric Servo Thermal Press Forming Machine Applications
● Precision Press-Fitting: Motor stator/rotor insertion, bearing pressing, pin fitting
● Stamping Forming: Metal sheet stamping, plastic part thermal pressing and shaping
● Electronics Assembly: 3C casing bonding, FPC thermal pressing, camera module assembly
● Medical/Automotive: Precision catheter welding, sensor packaging, interior part pressing
Key Component Analysis
1. Servo Electric Cylinder: Delivers precise and stable force output with fast response, without the lag of hydraulic systems.
2. Force/Pressure Sensor: Collects real-time pressure data for closed-loop control.
3. Insulation Plate: Effectively isolates high temperatures to protect the machine structure and operator.
4. Water Cooling Plate: Rapidly dissipates excess heat to stabilize mold temperature and improve molding quality.
5. Heating Plate: Utilizes high-quality heating tubes for uniform temperature rise and long service life.
Electric Servo Thermal Press Forming Machine Advantages
1. High-Precision Control
Achieves exceptional temperature accuracy with minimal fluctuation, ensuring consistent processing quality. The pressure control system, driven by a servo mechanism and guided by oil-free bushings, maintains high parallelism between the upper and lower heating plates, meeting stringent process requirements for both force and position.
2. Fast Response and High Throughput
The servo system delivers rapid dynamic response, quickly reaching preset temperature and pressure levels. This effectively reduces auxiliary and heating time, significantly boosting production throughput.
3. Flexible Programming and Intuitive Operation
Supports flexible programming for complex thermal pressing processes. The touchscreen HMI displays real-time key parameters such as force, temperature, dwell time, and vacuum level, making it adaptable to various materials and processes while enabling quick changeovers.
4. High Consistency and Low Defect Rate
Precise and stable control over temperature and pressure ensures consistent processing conditions across batches, resulting in excellent product repeatability and a significant reduction in defect rates caused by fluctuations.
5. Energy Efficiency and Comprehensive Safety
The servo-driven hydraulic system operates with low noise and provides energy on demand, delivering significant energy savings. Its enclosed dust-proof structure extends the lifespan of core components. Multiple safety features—including safety door locks, emergency stop switches, and overpressure/overtemperature alarms—ensure both operational efficiency and personnel protection.
If you want to learn more, please visit our website.
