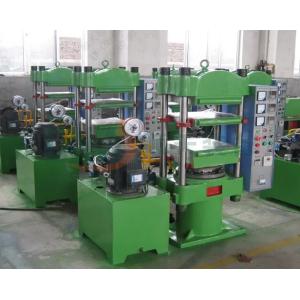

Plate Vulcanizer
Price:
A Plate Vulcanizer is a high-performance thermal pressing machine designed for rubber vulcanization, rubber sheet production, molded rubber parts manufacturing, gasket forming, conveyor belt repair, composite material pressing, and polymer processing applications. By applying controlled heat, pressure, and curing time, the machine transforms raw rubber compounds into durable finished products with enhanced mechanical properties and dimensional stability.
Widely used in the rubber industry, automotive manufacturing, sealing products production, industrial components processing, and composite material fabrication, plate vulcanizers are essential equipment for achieving consistent product quality and efficient production.
What Is a Plate Vulcanizer?
A plate vulcanizer is a hydraulic hot press machine equipped with heated platens that apply uniform pressure and temperature to rubber or polymer materials during the vulcanization process.
During operation:
Rubber material is placed inside a mold or between heated plates.
The machine applies pressure through a hydraulic system.
Heat activates the vulcanization reaction.
The material cures and forms the desired shape.
Finished products achieve improved strength, elasticity, wear resistance, and durability.
Plate vulcanizers are available in various sizes and configurations to meet different production requirements.

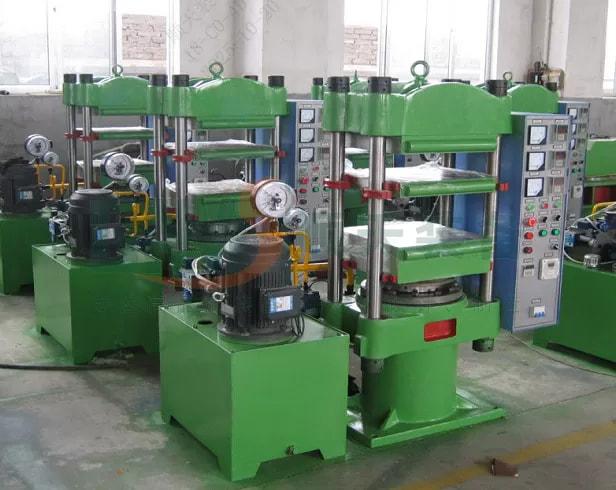

Structural Characteristics
This series features a compact design built from high-strength steel for easy operation. Its main features include:
1. Robust Frame: Made from welded high-quality steel plates. It undergoes aging or annealing to eliminate internal stress, preventing deformation under heavy use and ensuring long-term precision.
2. High-Precision Heating Plates: The plates are made from high-quality steel (or cast aluminum/copper) for excellent heat transfer. They have internal channels for oil or holes for heating elements. This design ensures a uniform surface temperature (typically within ±2°C to ±5°C). The surfaces are ground and polished for a smooth finish and even pressure distribution.
3. Stable Hydraulic System: An independent power unit, featuring a high-quality pump and low-noise motor with reliable hydraulic components, ensures smooth operation. It offers stepless pressure and speed adjustment, good pressure holding, and low energy consumption.
4. Intelligent Temperature Control: An advanced PID controller displays and regulates temperature in real time. It includes over-temperature alarms and automatic shut-off, allowing users to set the exact temperature needed for different materials.
5. Reliable Electrical Controls: The system is well-organized and offers automatic pressure maintenance, timing, and alarm or mold opening at cycle end. The interface is simple, making it easy for anyone to operate.
Application Fields
The flat vulcanizing press is versatile and widely used across many industries:
●Aerospace: For producing high-precision, heat-resistant seals (like O-rings) and composite parts for extreme environments.
●Rubber Products: Manufacturing gaskets, seals, vibration dampers, shoe soles, and for tire repairs.
●Composites: Forming laminated parts from thermosetting plastics such as phenolic and epoxy resins.
●Foaming: Producing EVA and other rubber foam sheets.
●Laboratory R&D: Testing new material formulations and developing process parameters.
Types of Plate Vulcanizers
Hydraulic Plate Vulcanizer
Provides high-pressure molding capability for industrial rubber products.
Electric Heating Plate Vulcanizer
Offers precise temperature control and simple installation.
PLC Automatic Plate Vulcanizer
Features programmable control for automated production and improved process consistency.
Conveyor Belt Plate Vulcanizer
Designed specifically for belt repair, jointing, and splicing applications.
Main Components
A typical plate vulcanizer includes:
Hydraulic power unit
Heated platens
Temperature control system
Hydraulic cylinders
Steel frame structure
Electrical control cabinet
PLC control system (optional)
Safety protection system
