Gabion Mesh Lacing Wire for Securing Panels and Connecting
Price:
Gabion Mesh Lacing Wire for Securing Panels and Connecting Gabion UnitsGabion lacing wire is used to tie gabion panels, lids, and diaphragms together during assembly. Its specifications usually match the gabion mesh material and coating to maintain uniform strength and corrosion resistance.

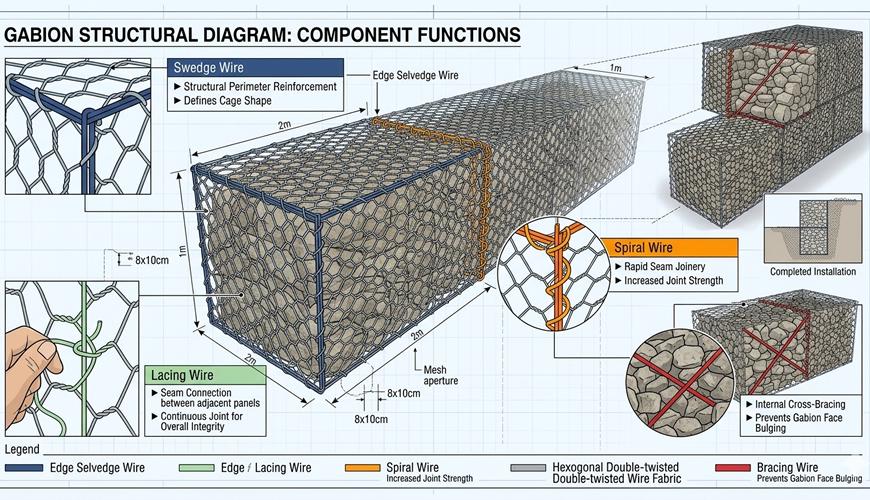

Here is a structural diagram of a gabion that illustrates how the different types of wire work together.
- Common wire diameters: Gabion lacing wire is commonly supplied in 2.0 mm, 2.2 mm, and 2.4 mm diameters. For heavier gabion baskets, 2.7 mm lacing wire may also be used.
- Common materials and coatings: The wire is usually made from low carbon steel wire with protective finishes such as hot-dip galvanized, Galfan coated (Zn-Al alloy), or PVC coated. The coating type should match the gabion mesh for long service life.
- Common coil and bundle dimensions: Gabion lacing wire is often supplied in coils or bundles, with common coil weights ranging from 5 kg to 25 kg. Standard wire lengths may vary by project requirement and installation method.
- Matching requirements: The lacing wire should have similar corrosion protection and mechanical performance as the gabion mesh wire. In most cases, the lacing wire diameter is equal to or slightly smaller than the main mesh wire diameter for easier tying and fastening.
- Typical applications: It is used for panel connection, lid closing, diaphragm fastening, and edge tying in gabion baskets, Reno mattresses, and related wire mesh structures.

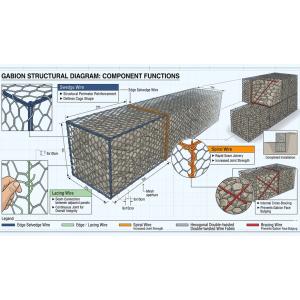

Here is a structural diagram of a gabion that illustrates how the different types of wire work together.
- Swedge Wire (Edge/Selvedge Wire): Thick wires that form the structural frame, providing rigidity and preventing the mesh from unravelling.
- Lacing Wire (Binding Wire): Flexible wire used to join adjacent gabion units together, forming a continuous structure.
- Spiral Wire: Alternative binding used for fast and neat seam connection, spiraling through the mesh edges.
- Bracing Wire (Internal Tie Wire): Connects the front and back faces internally to prevent the basket from bulging when filled with stones.
