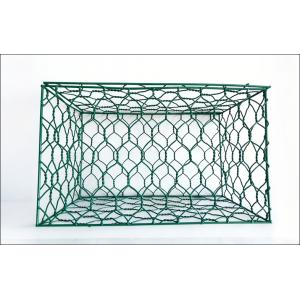

Heavy Gauge Gabion Cages for Structural Support and Retainin
Price:
Heavy Gauge Gabion Cages for Structural Support and Retaining Wall ConstructionMaterials
- Stone Quality for Gabions: The smallest dimension of any stone must be at least twice the longer dimension of the mesh used in the gabion box.
- Gabion Construction: Gabions shall be constructed from steel wire with mechanical properties that exceed the minimum standards outlined in EN 10223-3. The steel wire must be heavily galvanized with Galfan (a Zn-5%Al-MM alloy), and a PVC/Epoxy coating of at least 0.5 mm thickness is applied over the galvanized layer.
- Zinc Coating: The minimum weight of the zinc coating on the uncoated wire surface must be at least 200 grams per square meter.
- Tensile Strength of Wire: The tensile strength of the wire should be between 40-50 kg/mm².
- Gabion Cage Design: Gabion cages shall consist of wire netting that is double twisted to form a square mesh (100 mm x 100 mm) or triple twisted to form a hexagonal mesh (80 mm x 100 mm), as approved by the engineer. The mesh panels shall be made from 10-gauge wire, with a tolerance on wire diameter of ±2.5%.
- Edge and Diaphragm Specifications: All edges of the gabion boxes must be finished with selvedge wire (9 gauge). Diaphragms must be manufactured from the same material as the parent gabion, with selvedge wire throughout their perimeter. Diaphragms must be positioned to ensure no internal dimension in a gabion box or mattress exceeds 1.0 meter along the length of the box.
- Binding and Connecting Wires: Each gabion box shall be supplied with sufficient binding and connecting wires to bind all diaphragms and closing edges.

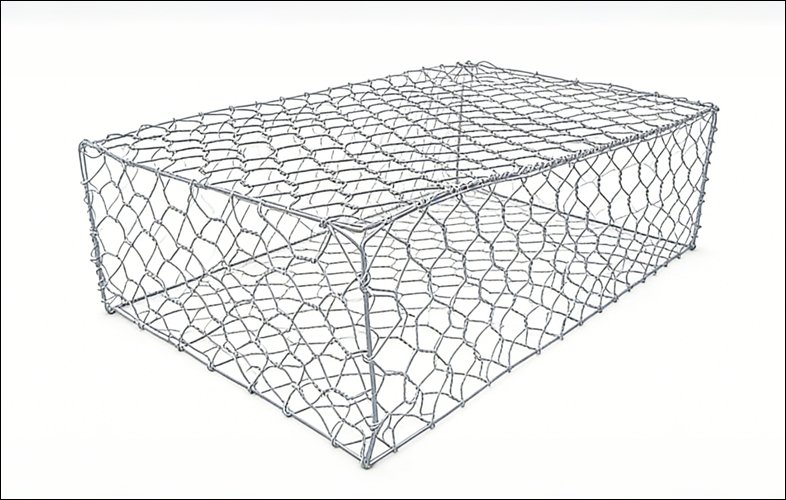

- Double-Twisted Gabion Boxes
- Size Options: 1 m x 1 m x 0.5 m, 2 m x 1 m x 1 m
- Wire Diameter: 4 mm
- Mesh Size: 60 mm x 80 mm
- Mesh Wire Diameter: 2.0 mm - 3.6 mm
- Selvedge Wire: 3.4 mm, 3.8 mm
- Lacing Wire: 2.2 mm, 2.5 mm
- Mesh Sizes Available: 60 mm x 80 mm, 80 mm x 100 mm, 100 mm x 120 mm

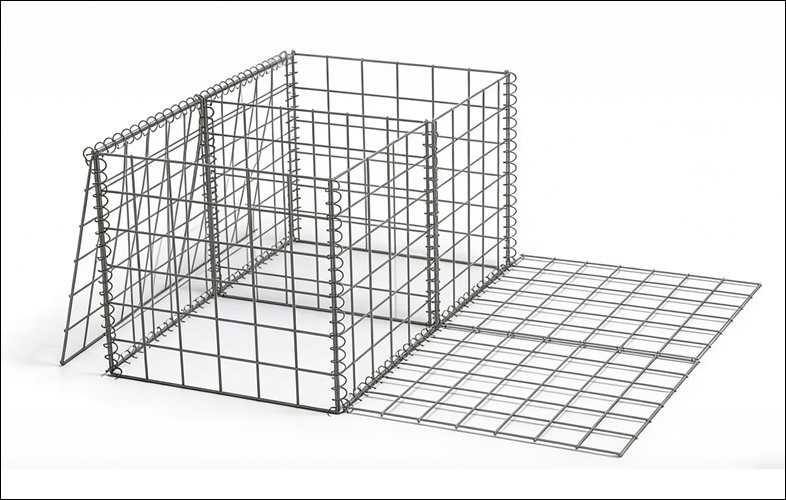

- Wire Mesh Types: Gabion boxes are made of wire containers that use either hexagonal wire netting or welded wire mesh.
- Hexagonal Wire Netting (Without PVC Coating): Wire diameter ranges from 2.0 mm to 4.0 mm.

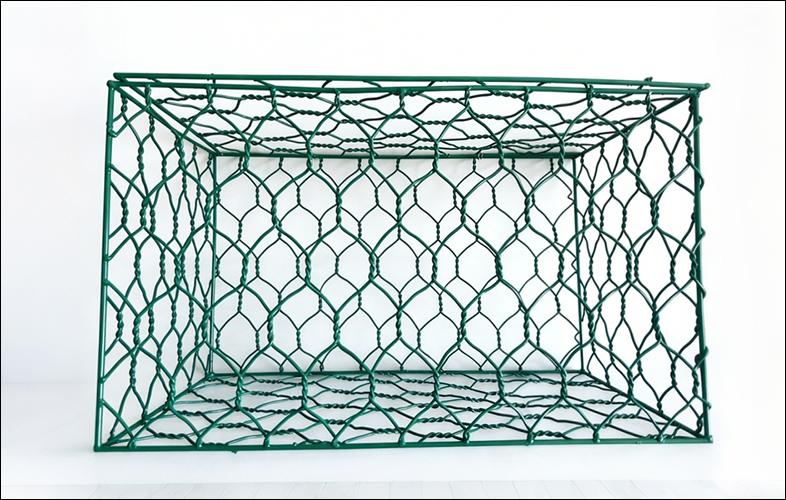

- Hexagonal Wire Netting (With PVC Coating): The outside diameter of the wire ranges from 3.0 mm to 4.0 mm.
- Wire Frame Edge: The wire used for the outside frame edge is thicker than the wire used for the hexagonal wire netting.
- PVC Coated Color Options: Dark green, gray, black, etc.
- Adjustable Sizes: Can be reduced from 9 ft to 6 ft, then to 3 ft.
- Common Sizes Available: 4' x 1' x 1', 3' x 1' x 1' ,2' x 1' x 1'
- Wire Thickness: The wire gauge used is 8 gauge, approximately 4.2 mm.
