Hexagonal Reno Mattresses for Riverbank Protection and Erosi

Price:

Hexagonal Reno Mattresses for Riverbank Protection and Erosion ControlPVC-coated galvanized gabion mattresses are flexible wire mesh units used for riverbank protection, slope stabilization, erosion control, and channel lining, each mattress is manufactured from double-twisted hexagonal wire mesh and designed to provide strength, durability, and corrosion resistance in hydraulic and civil engineering works.
Gabion Mattress Dimensions

Length:6 m
Width: 2 m
Height:0.3 m

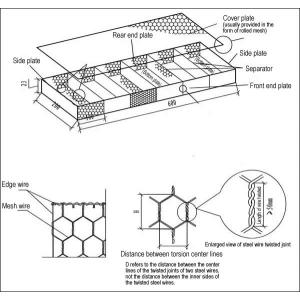

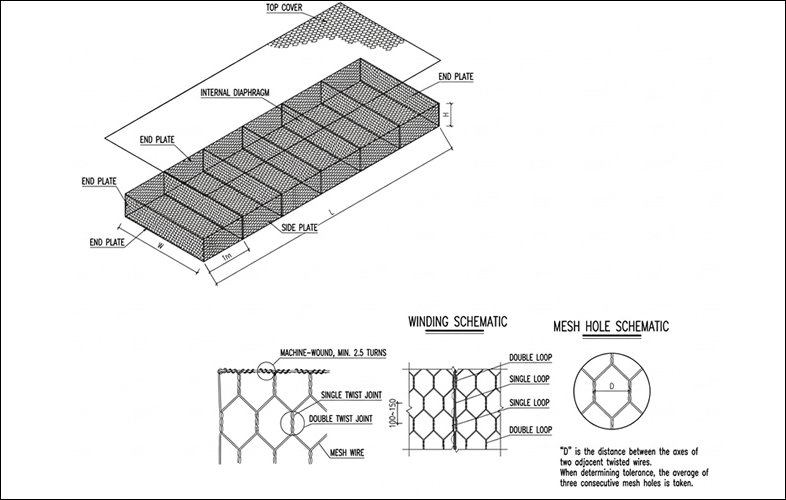

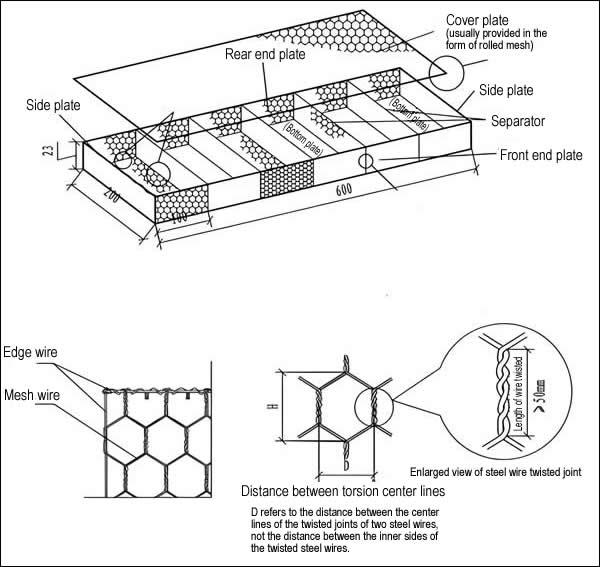

Each gabion mattress unit consists of a wire mesh base, side walls, 5 diaphragm cell separators, and a top cover.
Gabion Mattress Mesh Construction: Made of double-twisted PVC-coated galvanized hexagonal wire mesh.
Diaphragm Separator Requirements: Installed at 1 m intervals. Each gabion mattress has six cells. The diaphragm mesh shall match the outer mesh properties.
Lacing Wire Requirements: Each gabion mattress shall include enough lacing wire for assembly. The supplier shall determine the total lacing wire length, including normal installation wastage.
Galvanized Wire and Zinc Coating: The wire shall be hot-dip galvanized with at least 260 g/m² zinc coating. The wire and PVC coating shall meet the following physical and mechanical requirements.
Packing Requirements: folded flat, and packed in bundles.

Gabion Mattress for Our Utilities ProjectS. NoItem Description / SpecificationUnit of MeasurementQty per 'm' lengthTotal Length (m)Schedule ASchedule BTotal Qty

1	Boulders of 150 mm to 300 mm size for filling in Gabion boxes	cubic meter	2.10	1	2.10	4.00	6.10
2	3mm GI wire mesh for making Gabion box (Zinc Coated)	sqm	27.30	1	27.30	25.00	52.30
3	Placing of 2mm thick non-woven geotextile layer between filling and gabion box upto FGL	sqm	15.60	1	15.60	14.50	30.10

Notes

Schedule A: The initial or planned quantities for the first phase of filling gabions, such as the first 50 meters of a wall. For example, 27.30 sqm of wire mesh would be used in the first 50 meters of gabion boxes, with 2.10 cum of boulders for the same length.
Schedule B: The quantities for the next phase, or for a different task altogether, such as preparing a different area, perhaps a new section of wall.

By using Schedule A, the project team can track the expected amounts of materials and tasks in the beginning phase. Similarly, Schedule B would follow up with more detailed measurements or tasks.
Reno Mattresses and Gabion Mattresses for Retaining Wall ConstructionWe offer Reno mattresses in various sizes made from hexagonal netting with a mesh size of 60x80mm. The wire used has a diameter of 2.2mm and is coated with a Galfan coating (Zn 90%, Al 10%) for enhanced durability and corrosion resistance.

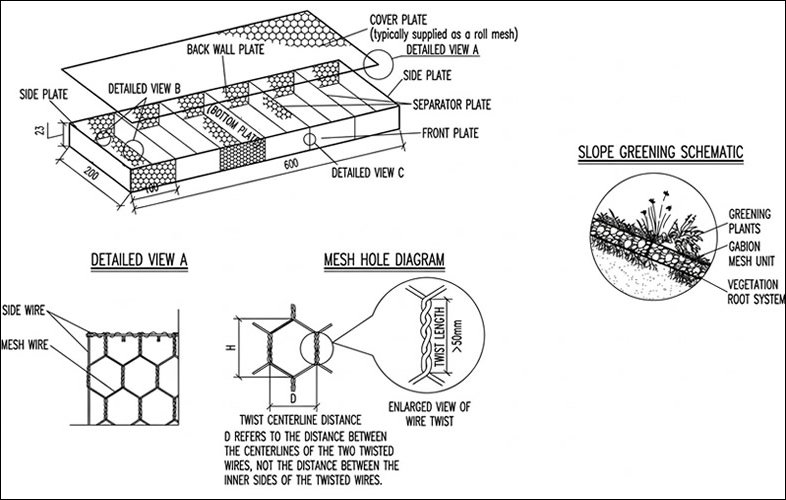

Reno Mattresses for Retaining Wall Construction

Reno Mattresses for Retaining Wall Construction

Reno Mattress Specifications:

Size: 3x2x0.3 +D2
Mesh: 60x80mm, triple twist
Wire Diameter: 2.2mm
Coating: Galfan (Zn 90%, Al 10%), PVC layer
Tensile Strength: > 55kN/m
Galfan Coating Weight: > 245g/m²
PVC Coating Thickness: 0.5mm
Swedge Wire: 3.4mm (Grade 380-550 MPa), PVC-coated to 4.4mm
Other Sizes Available: 3x1x0.3 Reno Mattress
Gabion Mattress (2x1x0.3m)
Gabion Mattress Renault: 5x2x0.3m, mesh 6x8mm, wire diameter 2.4mm

Technical Specifications for Gabion Mattresses:

Dimensions: 6x2x0.3m with 6 cells
Anti-corrosion protection: Galfan coating (Zn90/Al10) + PVC layer
Mesh Opening: 6x8mm
Wire Diameter: 2.4mm grade 380-550 MPa (PVC-coated to 3.4mm)

These gabion mattresses are suitable for various applications, including erosion control, slope stabilization, and foundation support. The Galfan coating provides superior anti-corrosion protection, making them ideal for long-term use in harsh environments.
