Gabion Baskets for Retaining Wall Design and Garden Structur
Price:
Gabion Baskets for Retaining Wall Design and Garden Structure ApplicationsWe provide customized Gabion Baskets for export to Africa, manufactured to international standards and project requirements:

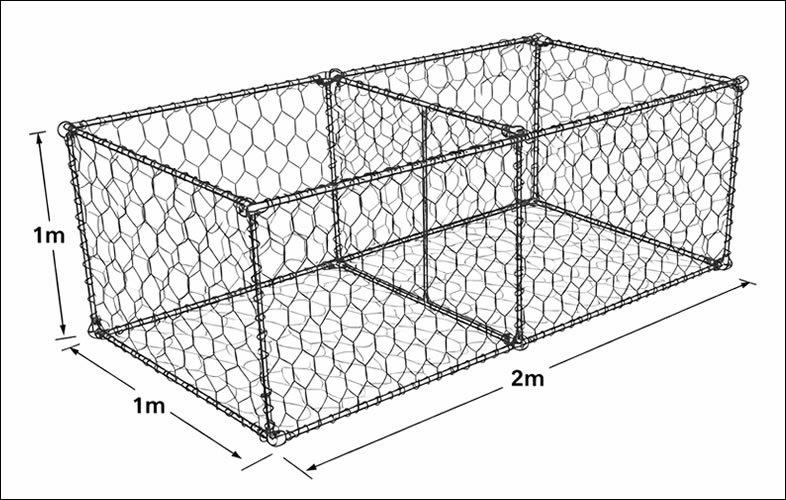

GABION Baskets 2 × 1 × 1 m
Double-twisted hexagonal wire mesh
Standard Mesh Openings:
Coating Types:
Wire Diameter:
We supply gabion baskets for a retaining wall project designed for creek-side erosion control and load-bearing support
Project Overview

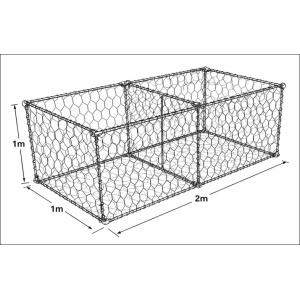

GABION Baskets 2 × 1 × 1 m
Double-twisted hexagonal wire mesh
- Wire Diameter: 2.7 mm
- Surface Treatment: Galvanized, 250 g/m² zinc coating
- Structure: With central diaphragm
- Lacing Wire: 2.2 mm
- Quantity: 500 units
Standard Mesh Openings:
- 6 × 8 cm (standard size)
- 8 × 10 cm (for larger structures)
Coating Types:
- Heavy galvanization: Minimum zinc coating 240–250 g/m²
- Galvanized + PVC coating: PVC thickness 0.5–0.6 mm for extended service life
- Suitable for coastal areas, acidic soils, and high-corrosion environments
Wire Diameter:
- Mesh wire: 2.7 mm (±0.1 mm)
- Edge wire (selvedge): 3.4 mm (±0.1 mm)

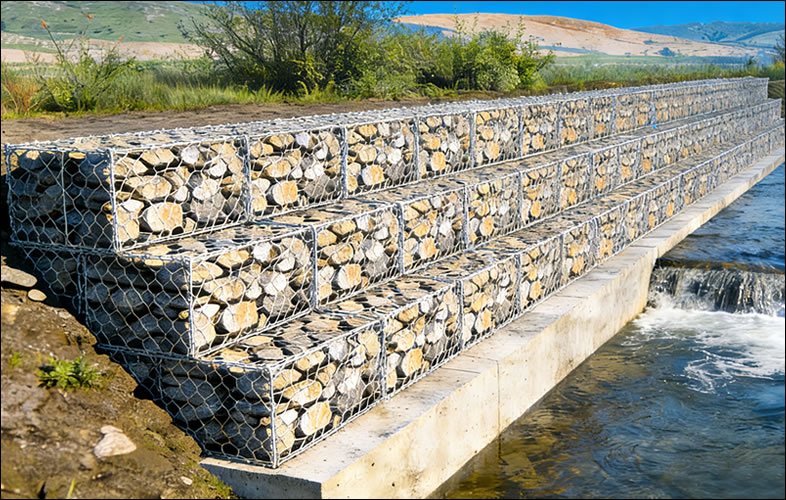

We supply gabion baskets for a retaining wall project designed for creek-side erosion control and load-bearing support
Project Overview
- Wall Length: 50 ft
- Wall Height: 60 cm (24 in)
- Application: Load-bearing retaining wall near a creek with periodic flooding (every 1–2 years)
- Basket Size: 24 in (H) × 24 in (D) × 6 ft (L)
- Quantity: Approximately 9 baskets
- Type: Rectangular gabion baskets for structural use
- Coating Options: Galvanized or Galfan for wet environments
- Accessories Included: Spiral binders, lacing wire, stiffeners
- Price per Basket: USD ***per unit
- Total Basket Cost (9 units): ****
- 10 tons angular stone (2–4 in): USD **** total
- 3 tons crushed base stone (¾″ minus): USD **** total
- Mesh Wire Diameter: 2.7 mm (standard), optional 3.0 mm
- Selvedge Wire: 3.4 mm
- Mesh Opening: 80 × 100 mm or 100 × 120 mm
- Galvanized (min 240–275 g/m² zinc)
- Galfan (Zn-Al alloy, higher corrosion resistance)
- PVC-coated (0.5 mm thickness over galvanized or Galfan wire)
- Use Galfan or PVC-coated gabions for longer service life in wet conditions
- Ensure proper foundation leveling and geotextile installation to prevent soil loss
- Use angular stone (2–4 in) for better interlock and drainage
- Install diaphragms and stiffeners to maintain basket shape under load
- Allow drainage through the structure to reduce hydrostatic pressure
