Galvanized Hexagonal Gabion Boxes for Retaining Wall Constru
Price:
Galvanized Hexagonal Gabion Boxes for Retaining Wall Construction and Soil StabilizationWe offer Hexagonal Wire Mesh, Gabion Baskets, and Terramesh systems. All wire is high quality and complies with EN 10223-3 and EN 10244-2 Class A standards.

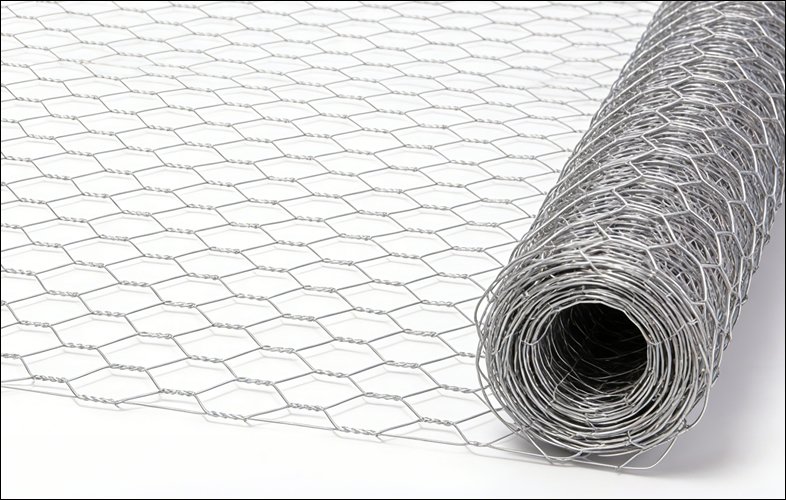

Hexagonal Wire Mesh
Hexagonal Wire Mesh
- Hot-dip heavy galvanized
- Mesh Wire: 2.70 mm galvanized (min 245 g/m²)
- Selvedge Wire: 3.40 mm galvanized (min 265 g/m²)
- Tensile Strength: 350–500 N/mm²
- Mesh Opening: 80 × 100 mm (±5 mm tolerance)
- Roll Size: 50 m × 4 m
- 1- Weight of Each Roll: 90–105 kg per roll
- 2- Loading Information for 40 HC Container: 220–260 rolls per 40 HC container
- 3-Total weight: 20–25 tons
- Hot-dip heavy galvanized
- Mesh Wire: 2.70 mm galvanized (min 245 g/m²)
- Selvedge Wire: 3.40 mm galvanized (min 265 g/m²)
- Tensile Strength: 350–500 N/mm²
- Mesh Opening: 80 × 100 mm (±5 mm tolerance)
- Dimensions: 2 × 1 × 1 m (with one diaphragm)
- 1- Weight of Each Unit: 18–25 kg per unit
- 2- Loading Information for 40 HC Container: 900–1,200 units per 40 HC container
- 3-Total weight: 18–24 tons

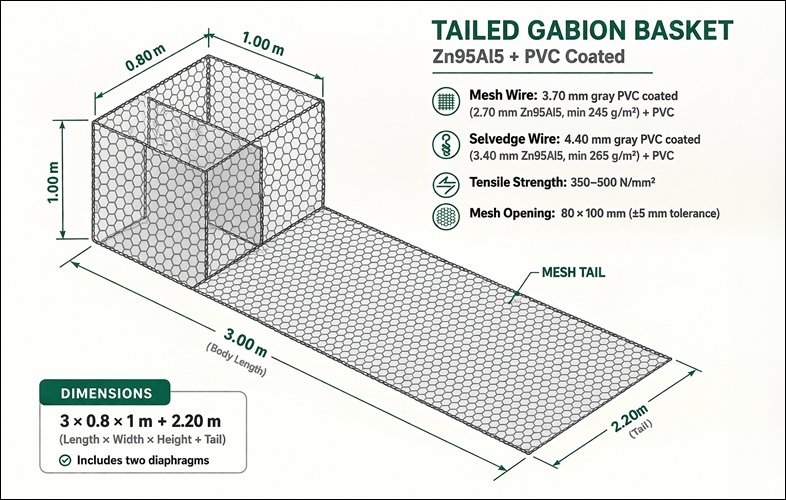

- Mesh Wire: 3.70 mm gray PVC coated (2.70 mm Zn95Al5, min 245 g/m²) + PVC
- Selvedge Wire: 4.40 mm gray PVC coated (3.40 mm Zn95Al5, min 265 g/m²) + PVC
- Tensile Strength: 350–500 N/mm²
- Mesh Opening: 80 × 100 mm (±5 mm tolerance)
- Dimensions: 3 × 0.8 × 1 m + 2.20 m (length × width × height + tail) (with two diaphragms)
- 1- Weight of Each Unit: 28–40 kg per unit
- 2- Loading Information for 40 HC Container: 600–850 units per 40 HC container
- 3-Total weight: 18–25 tons
