Electromagnetic Flow Meter – johnson controls

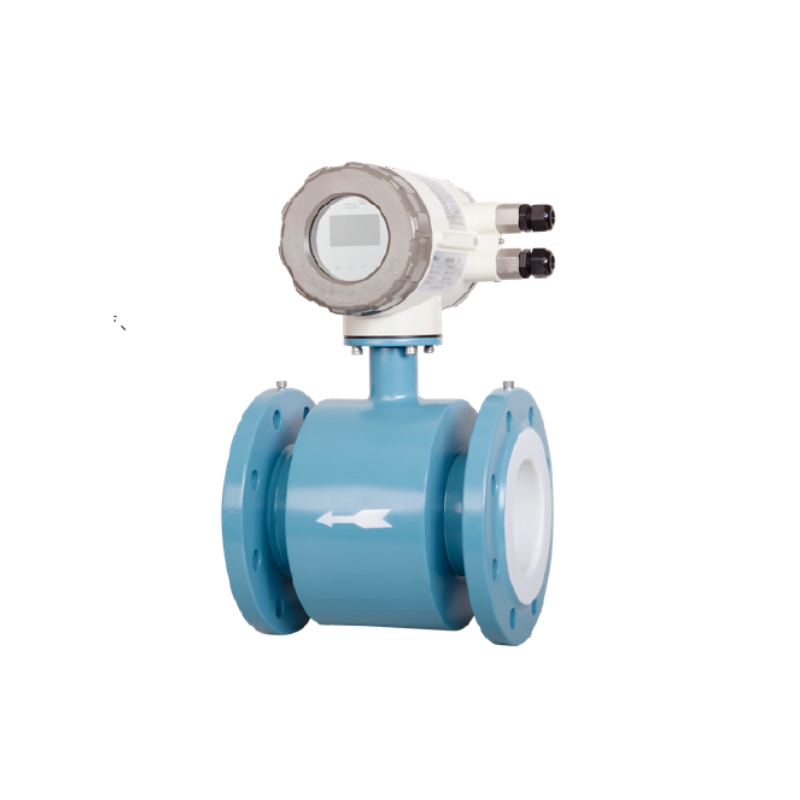

Johnson Controls' electromagnetic flowmeters are available in diameters from DN15 to DN600. The valve body is made of ductile iron, the electrodes are made of SS316L stainless steel, the guide tube is made of SS304 stainless steel, and the inner lining is PTFE or neoprene rubber. Power supply options include 24VDC or 110-240VAC. This electromagnetic flowmeter can measure various media, such as air conditioning water, domestic water, and tap water. The applicable medium temperature range is -20℃ to 120℃; it employs a bidirectional measurement system, capable of measuring both forward and reverse flow. The display head shows instantaneous and cumulative flow values. This flowmeter is available in integrated and split types, allowing selection based on site conditions, and is easy to install. The electromagnetic flowmeter has no resistance within the measuring tube, resulting in no pressure loss. It has an IP65 protection rating, offering high protection and a long service life. The output signal is 4-20mA, pulse output, and it features an RS485 communication interface with Modbus RTU protocol.
