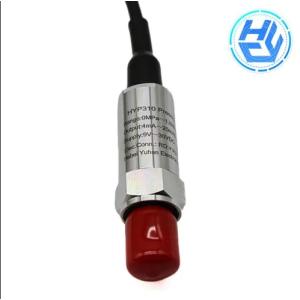

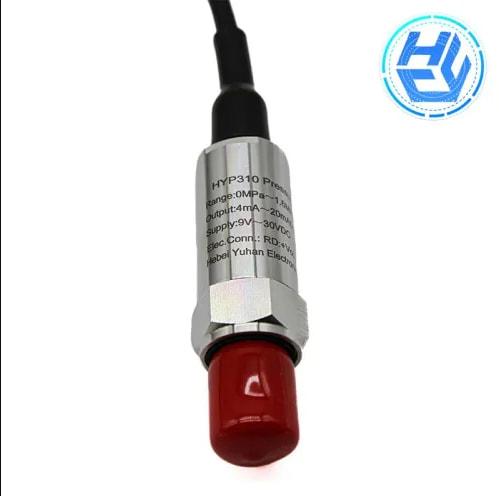

Pressure Type Water Level Gauge
Price:
Pressure Type Water Level Gauge
APPLICATION CASE
YHP410 Used in petroleum, chemical industry, electric power, urban water supply, heating, sewage treatment, agricultural irrigation, hydrological monitoring, water supply company, groundwater monitoring
INTELLIGENT PRESSURE
YHP451 intelligent pressure type water level gauge uses high-performance diffused silicon pressure sensor as the sensitive element, uses high-performance MCU as the core of the highly integrated circuit, software and hardware anti-interference design, full digital adjustment, temperature and pressure integration, the overall performance of the product is stable and reliable.
FEATURES
1. Multiple output signals are optional
2. Adopt digital temperature compensation and nonlinear correction technology
3. Anti-interference, anti-surge protection
4. All stainless steel structure design, small size, light weight
5. With RS485 communication interface, standard MODBUS protocol
6. Support networking applications
7. Meet the water standard GB/T 11828.2-2022 "Water level measuring instrument Part 2: Pressure type water level gauge"
8. The product has obtained CE certification
9. Obtained explosion-proof certificate, explosion-proof mark is ExiaIICT6Ga2. All stainless steel sealed structure, protection level IP68
SPECIFICATION
• Shell: Stainless steel 304/ Stainless steel 316L
• Measuring range: 0mH2O ~ 1mH2O... 300m H2O (customizable range)
• Power supply: 8 to 30V DC
• Output: 4mA ~ 20mA DC (two-wire system), RS485 communication
• Protection class: IP68
High quality pressure gauges for accurate and reliable measurements.
Use the filtering options provided below to find the best pressure gauge. If you need help determining the best choice, we are ready to guide you through the gauge selection tool.
Pressure gauges are used to measure absolute (overpressure and negative) and relative pressures of air, gases and/or liquids. When measuring absolute pressure in a closed system, the absolute pressure outside the system to be measured must be taken into account, so select the gauge best suited for the purpose.
Pressure gauges can be used for pressure measurement in the laboratory, on the factory floor or in critical processes. We offer a wide range of options and more choices.
By choosing Yuhan as your pressure transmitter manufacturer, you can be assured of quality, variety, and value.
If you want to learn more, please visit our website.
