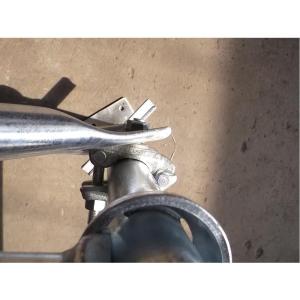

Cuplock scaffolding diagonal clamp
Price:
Cuplock scaffolding diagonal clamp
Product Size
Diagonal clmap/ Swivel clamp brace | ||||
Product | Bay length | Weight | ||
REF No. | Description | Meters | Inches | KG |
SCB5 | Swivel clamp brace 5' | 1.52 | 60 | 9.10 |
SCB7 | Swivel clamp brace 7' | 2.13 | 84 | 10.50 |
SCB8 | Swivel clamp brace 8' | 2.43 | 96 | 11.40 |
SCB10 | Swivel clamp brace 10' | 3.05 | 120 | 13.00 |
Product Description
Insert the swivel ledger blades at both ends of the cuplock diagonal into the bottom cup of cuplock standard. Press and rotate the top cups, and use the stop pin to fix the top cups.
Connecting the cuplock diagonal with the vertical cuplock pole is convenient, forming a complete cuplock system with the cuplock standard and horizontal components. The diagonal brace provides reinforcement and it can be used as a handrail.
The finished of cuplock diagonal is hot-dip galvanized.
Cuplock scaffolding is a modular system scaffold made from high-strength steel tubes with a unique cup-and-blade locking mechanism. This design allows quick, secure, and rigid connections between vertical standards and horizontal ledgers without the need for loose fittings such as nuts and bolts.
Developed originally by SGB (UK), the Cuplock system has become one of the most widely used scaffolding systems worldwide because of its simplicity, versatility, and safety in construction, industrial maintenance, and infrastructure projects.
