15.8mm Constant Tension Heavy Duty Hose Clamp
Price:

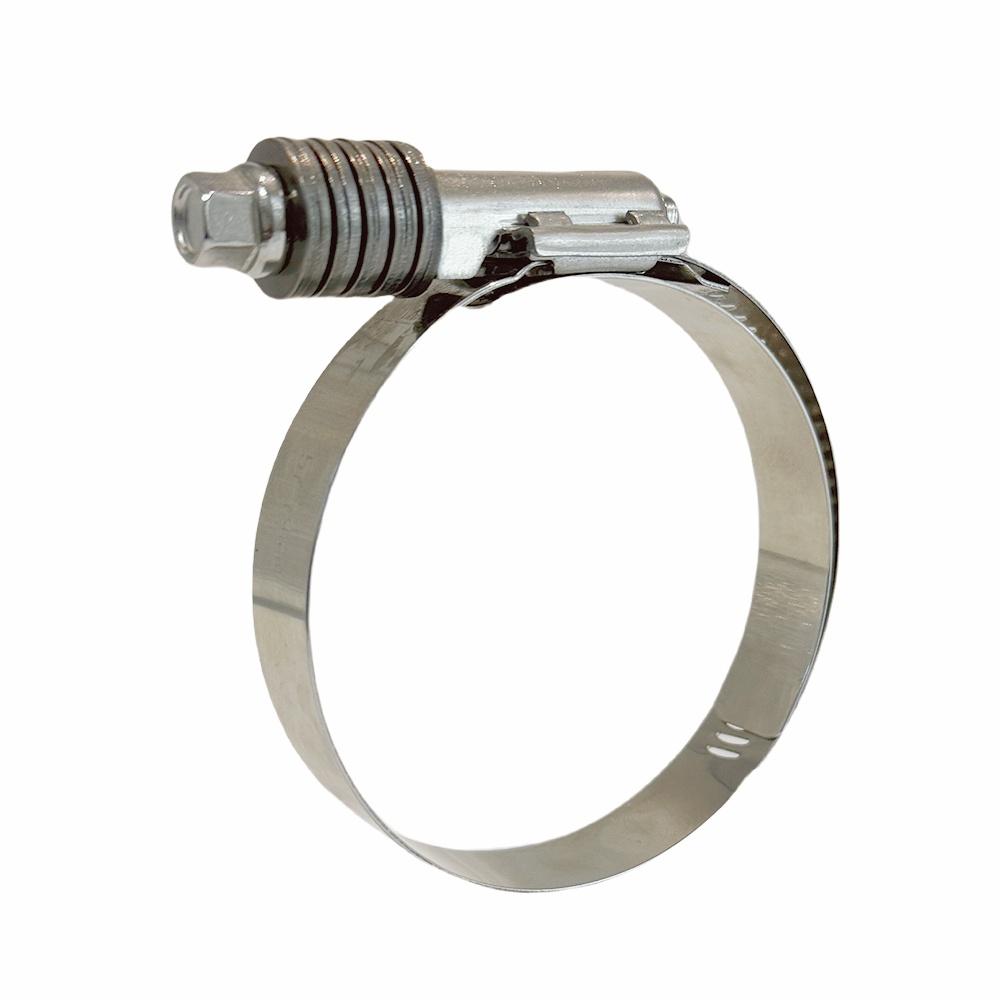

15.8mm Constant Tension Heavy Duty Hose Clamp
The Constant Tension Belleville Washer is built to adjust for changes in pressure and temperature in the hose line. This stops the clamps from getting loose on the hose and prevents leaks. 2 pieces housing design is suitable for higher torque. The liner prevents direct contact of perforations with hose, protect the hose won’t get damaged when install with high torque.
Feature
The constant tension washer is intended to cope with the changes in pressure and temperature
The liner protect the hose from directly contact with perforation
Band Width: 0.62″(15.8mm)
Band Thickness: 0.024″ (0.6mm)
Screw: 5/16″ (8mm) Hex screw head
Recommended Tightening Torque: 11N.m
No burrs, protect soft hose well
Standard: SAE J1508
Application: Widely used in automotive, engine, marine and oil & gas area
Parameters
Material
We offer competitive wholesale pricing, flexible minimum order quantities (MOQs), and fast global shipping to meet your business needs. With advanced manufacturing technology and rigorous quality control, YOUDE ensures every clamp meets international standards for durability and performance.
Looking for a reliable supplier of constant tension hose clamps? Contact us today for a customized quote and discover why businesses worldwide choose YOUDE for their hose clamp solutions!
For more information, please visit our website.
The Constant Tension Belleville Washer is built to adjust for changes in pressure and temperature in the hose line. This stops the clamps from getting loose on the hose and prevents leaks. 2 pieces housing design is suitable for higher torque. The liner prevents direct contact of perforations with hose, protect the hose won’t get damaged when install with high torque.
Feature
The constant tension washer is intended to cope with the changes in pressure and temperature
The liner protect the hose from directly contact with perforation
Band Width: 0.62″(15.8mm)
Band Thickness: 0.024″ (0.6mm)
Screw: 5/16″ (8mm) Hex screw head
Recommended Tightening Torque: 11N.m
No burrs, protect soft hose well
Standard: SAE J1508
Application: Widely used in automotive, engine, marine and oil & gas area
Parameters
Size | UD No. | Suggested install toque | ||
mm | inch | W2 | W4 | |
26-45 | 1″-1 3/4″ | CT-UDAT2-24 | CT-UDAT4-24 | 11N.m |
32-54 | 1 1/4″-2 1/8″ | CT-UDAT2-28 | CT-UDAT4-28 | 11N.m |
45-67 | 1 3/4″-2 5/8″ | CT-UDAT2-32 | CT-UDAT4-32 | 11N.m |
57-79 | 2 1/4″-3 1/8″ | CT-UDAT2-36 | CT-UDAT4-36 | 11N.m |
70-92 | 2 3/4″-3 5/8″ | CT-UDAT2-40 | CT-UDAT4-40 | 11N.m |
83-105 | 3 1/4″-4 1/8″ | CT-UDAT2-44 | CT-UDAT4-44 | 11N.m |
96-118 | 3 3/4″-4 5/8″ | CT-UDAT2-48 | CT-UDAT4-48 | 11N.m |
108-131 | 4 1/4″-5 1/8″ | CT-UDAT2-52 | CT-UDAT4-52 | 11N.m |
121-143 | 4 3/4”-5 5/8” | CT-UDAT2-56 | CT-UDAT4-56 | 11N.m |
134-156 | 5 1/4”-6 1/8” | CT-UDAT2-60 | CT-UDAT4-60 | 11N.m |
146-169 | 5 3/4”-6 5/8” | CT-UDAT2-64 | CT-UDAT4-64 | 11N.m |
159-181 | 6 1/4”-7 1/8” | CT-UDAT2-68 | CT-UDAT4-68 | 11N.m |
172-193 | 6 3/4”-7 5/8” | CT-UDAT2-72 | CT-UDAT4-72 | 11N.m |
184-207 | 7 1/4”-8 1/8” | CT-UDAT2-76 | CT-UDAT4-76 | 11N.m |
192-219 | 7 3/4”-8 5/8” | CT-UDAT2-80 | CT-UDAT4-80 | 11N.m |
210-232 | 8 1/4”-9 1/8” | CT-UDAT2-84 | CT-UDAT4-84 | 11N.m |
Sizes can be adjusted as per enquiry. |
Material
Material | Band | Housing | Screw | Washer |
W2 | AISI 201SS/304SS | AISI 201SS/304SS | Zinc plated steel | AISI 410ss |
W4 | AISI 201SS/304SS | AISI 201SS/304SS | AISI 201SS/304SS | AISI 410ss |
We offer competitive wholesale pricing, flexible minimum order quantities (MOQs), and fast global shipping to meet your business needs. With advanced manufacturing technology and rigorous quality control, YOUDE ensures every clamp meets international standards for durability and performance.
Looking for a reliable supplier of constant tension hose clamps? Contact us today for a customized quote and discover why businesses worldwide choose YOUDE for their hose clamp solutions!
For more information, please visit our website.
