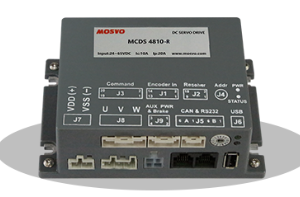

MOSVO Digital Servo Driver for BLDC Motor MCDS 4810-R
Price:
Features:
1. Operating Modes:Torque Mode,Speed Mode,Position Mode;
2. Feedback Elements:Incremental encoder, Hall sensor, resolver;
3. Control Ports:Digital command RS232,CAN,Pulse1/CU (high-speed input,pulse or CU (forward pulse) input), Pulse2/CD/DIR (high-speed input, direction or CD (reverse pulse) input),ENABLE/DIR/LEFT/RIGHT (4 fixed-function programmable inputs),FAULT (1 fixed-function programmable output),IO1~4 (4 programmable inputs/outputs),±10V analog voltage,single-ended analog voltage (potentiometer);
4. Network control via CAN bus;
5. Suitable for driving brushless DC servo motors;
6. Space vector operation, sine wave control (brushless DC servo motors);
7. Motor brake control;
8. Automatic zeroing function;
9. Hardware and software limit functions;
10. IIT current limit;
11. Temperature protection;
12. Overvoltage and undervoltage protection;
13. Rapid runaway protection;
14. Tracking over-limit protection.
1. Operating Modes:Torque Mode,Speed Mode,Position Mode;
2. Feedback Elements:Incremental encoder, Hall sensor, resolver;
3. Control Ports:Digital command RS232,CAN,Pulse1/CU (high-speed input,pulse or CU (forward pulse) input), Pulse2/CD/DIR (high-speed input, direction or CD (reverse pulse) input),ENABLE/DIR/LEFT/RIGHT (4 fixed-function programmable inputs),FAULT (1 fixed-function programmable output),IO1~4 (4 programmable inputs/outputs),±10V analog voltage,single-ended analog voltage (potentiometer);
4. Network control via CAN bus;
5. Suitable for driving brushless DC servo motors;
6. Space vector operation, sine wave control (brushless DC servo motors);
7. Motor brake control;
8. Automatic zeroing function;
9. Hardware and software limit functions;
10. IIT current limit;
11. Temperature protection;
12. Overvoltage and undervoltage protection;
13. Rapid runaway protection;
14. Tracking over-limit protection.
