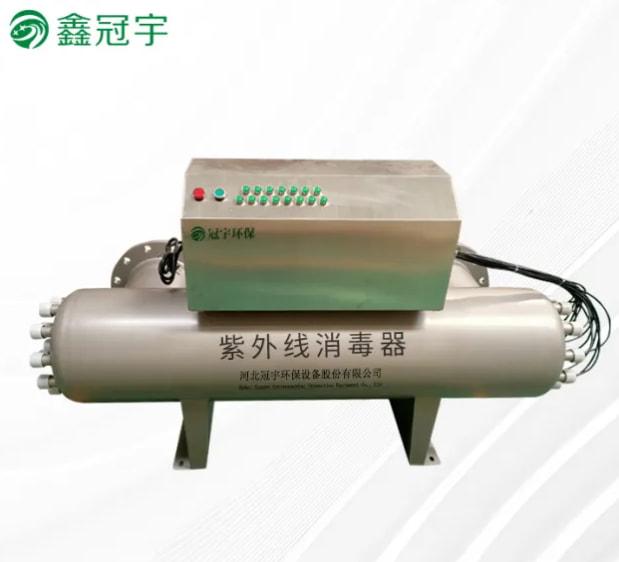

Large flow type ultraviolet disinfection device
Price:

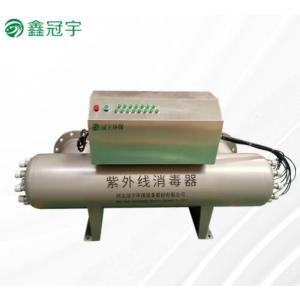

Large flow type ultraviolet disinfection device
Ultraviolet disinfection principle
According to the difference in its biological effects, ultraviolet rays can be divided into UV-A (320-400nm), UV-B (275-320nm), UV-C (200-275nm) and vacuum ultraviolet rays. In water treatment, the UV-C part of ultraviolet rays is actually used. In this band, the ultraviolet rays around 260nm have been proven to have the highest sterilization efficiency.
Guanyu ultraviolet disinfection device integrates comprehensive sciences such as optics, microbiology, mechanics, chemistry, electronics, and fluid mechanics. The strong ultraviolet UV-C light generated by the specially designed high-efficiency, high-intensity and long-life ultraviolet UV-C light generating device is used to irradiate the flowing water. When bacteria, viruses, etc. in the water are irradiated with a certain dose of ultraviolet UV-C light (wavelength 253.7nm). Its cell DNA and structure are destroyed, and cell regeneration cannot be carried out, thereby achieving water disinfection and purification. The spectrum with a wavelength of 185nm can also decompose organic molecules in water, generate hydrogen free radicals and oxidize organic molecules in water into carbon dioxide, so as to achieve the purpose of removing TOC.
Features of Guanyu UV Sterilizer Disinfection Equipment
Imported lamps: high efficiency and long life
The equipment uses imported lightsources Philips UV lamps, which have high-intensity output, high conversion rate, long life, good reliability, and good continuous sterilization and disinfection effect;
Professional customized ballast
The electronic ballast used in the equipment with stable performance and high matching is specially tailored for this product, with strong adaptability, high matching, long life, and complete protection functions;
Imported material quartz sleeve
The sleeve with high purple transmittance and high sterilization rate is made of pure imported raw material quartz from Pacific, with good matching and high transmittance. High UV rate (UV transmittance is above 93%);
Big brand pharmaceutical (food) grade 316 (304) stainless steel raw materials
This product uses customized plates and pipes, and the main components are all cut, opened and cut by laser. The product has uniformity, consistency, interchangeability, aesthetics, high precision, small error, easy installation, fast and efficient, time-saving, labor-saving and labor-saving
You can find more information on our web, so please take a look.
Ultraviolet disinfection principle
According to the difference in its biological effects, ultraviolet rays can be divided into UV-A (320-400nm), UV-B (275-320nm), UV-C (200-275nm) and vacuum ultraviolet rays. In water treatment, the UV-C part of ultraviolet rays is actually used. In this band, the ultraviolet rays around 260nm have been proven to have the highest sterilization efficiency.
Guanyu ultraviolet disinfection device integrates comprehensive sciences such as optics, microbiology, mechanics, chemistry, electronics, and fluid mechanics. The strong ultraviolet UV-C light generated by the specially designed high-efficiency, high-intensity and long-life ultraviolet UV-C light generating device is used to irradiate the flowing water. When bacteria, viruses, etc. in the water are irradiated with a certain dose of ultraviolet UV-C light (wavelength 253.7nm). Its cell DNA and structure are destroyed, and cell regeneration cannot be carried out, thereby achieving water disinfection and purification. The spectrum with a wavelength of 185nm can also decompose organic molecules in water, generate hydrogen free radicals and oxidize organic molecules in water into carbon dioxide, so as to achieve the purpose of removing TOC.
Features of Guanyu UV Sterilizer Disinfection Equipment
Imported lamps: high efficiency and long life
The equipment uses imported lightsources Philips UV lamps, which have high-intensity output, high conversion rate, long life, good reliability, and good continuous sterilization and disinfection effect;
Professional customized ballast
The electronic ballast used in the equipment with stable performance and high matching is specially tailored for this product, with strong adaptability, high matching, long life, and complete protection functions;
Imported material quartz sleeve
The sleeve with high purple transmittance and high sterilization rate is made of pure imported raw material quartz from Pacific, with good matching and high transmittance. High UV rate (UV transmittance is above 93%);
Big brand pharmaceutical (food) grade 316 (304) stainless steel raw materials
This product uses customized plates and pipes, and the main components are all cut, opened and cut by laser. The product has uniformity, consistency, interchangeability, aesthetics, high precision, small error, easy installation, fast and efficient, time-saving, labor-saving and labor-saving
You can find more information on our web, so please take a look.
