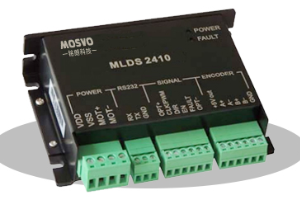

MOSVO factory supply DC brush Servo Driver MLDS 2410-A
Price:
Isolated low-cost DC Servo Driver
Features:
1.Power supply: DC20-30V;
2.10A continuous current. 20A peak current;
3.Command interface: CLK/DIR, PWM
Stepper Mode Control via CLK/DIR
Velocity Control via PWM
4.Feedback option: incremental encoder
5.PC online turning via RS232
6.Pre-set PID configuration for batch installation
7.Dynamic tracking between 1-10000ppr
8.Protection for over current, over load, over voltage, under voltage, overheat protection and over position tracking protection
9.Designed for PM servo motors, ironless DC motors and torque motors.
Features:
1.Power supply: DC20-30V;
2.10A continuous current. 20A peak current;
3.Command interface: CLK/DIR, PWM
Stepper Mode Control via CLK/DIR
Velocity Control via PWM
4.Feedback option: incremental encoder
5.PC online turning via RS232
6.Pre-set PID configuration for batch installation
7.Dynamic tracking between 1-10000ppr
8.Protection for over current, over load, over voltage, under voltage, overheat protection and over position tracking protection
9.Designed for PM servo motors, ironless DC motors and torque motors.
