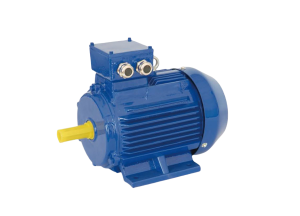

3-Phase Asynchronous Motor
Price:
Efficiency: IE1、IE2、IE3、IE4、IE5
Frequency: 50HZ、 60HZ
Pole： 2pole, 4pole, 6pole, 8pole, 10pole，
Frame size: H80- 355 (Cast iron frame )
Protection class： IP55, IP56, IP65
Insulation class: F、 H
Certificate: CCC、CE、Conformity Certificate of Explosion-Proof
0.55~375kw IE2 IE3 IE4 IE5 CE CCC Approved Three Phase Induction AC Asynchronous Electric Motor
Frequency: 50HZ、 60HZ
Pole： 2pole, 4pole, 6pole, 8pole, 10pole，
Frame size: H80- 355 (Cast iron frame )
Protection class： IP55, IP56, IP65
Insulation class: F、 H
Certificate: CCC、CE、Conformity Certificate of Explosion-Proof
0.55~375kw IE2 IE3 IE4 IE5 CE CCC Approved Three Phase Induction AC Asynchronous Electric Motor
| MOTOR TYPE | Y, Y2, Y3, YE2, YE3, YVF2, YVP2, YEJ, YEJVF, YD, YS, MS, YL,YY, YC |
| STRUCTURE | 100% Copper winding, Iron Cast |
| PROTECTION CLASS | IP55, IP56, IP65 |
| INSULATION CLASS | Class F or Class H |
| VOLTAGE | 110V, 220V, 230V, 240V, 250V, 380V, 400V, 415V, 420V, 440V, 525V, 660V, 690V. |
| FREQUENCY | 50HZ or 60HZ |
| EFFICIENCY | IE1, IE2, IE3, IE4，IE5 |
| OUTPUT POWER | 0.55KW~375KW |
| PHASE | Three Phase |
| POLE | 2pole, 4pole, 6pole, 8pole, 10pole. |
| COOLING METHOD | IC 411, IC 416, IC 01, IC 611 |
| DUTY | S1 (24Hour continuous working) |
| AMBIENT TEMPRETURE | -15°C≤ 0 ≤ 40°C |
| ALTITUDE | NOT EXCEED THAN 1000M |
| MOUNTING TYPE | B3,B5,B35, B14, B34, V1 etc. |
| STANDARD | IEC International Standard, China CCC, ISO 9001, Kenya COC, Saudia Araba (SASO) |
| PACKAGE | Carton or Wooden Case, well protection, easy loading and delivery. |
| APPLICATION | Reducer, Water Pump, Washing Machine, Gear Motor, Assembly line, Air Compressor, Packing and Food Machinery, Mill Machinery, etc. |
| DELIVERY | 20~35 Days |
