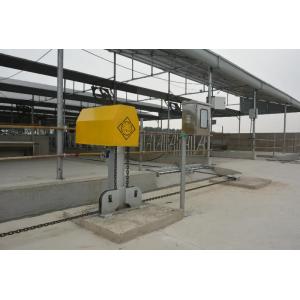

9FQ-3500 Manure Scraper
Price:
A Livestock Manure Scraper is an essential part of every modern livestock facility, designed to efficiently remove manure and maintain a clean, hygienic environment for animals. With growing attention to automation and environmental protection, the demand for intelligent and durable cleaning systems is increasing. As a professional livestock manure scraper manufacturer, Sifeng Environmental provides complete manure cleaning solutions for dairy farms, pig barns, and poultry houses, helping farms achieve higher productivity and sustainability.
Equipment Parameters
Drive unit: manure channel length ≤ 100 meters, equipped with R97-1.5-4P hard-toothed surface reducer
100 meters ≤ manure channel length ≤ 150 meters, equipped with R107-2.2-4P hard-toothed surface reducer
150 meters ≤ manure channel length ≤ 200 meters, equipped with R137-3-6P hard-toothed surface reducer
What Is a Livestock Manure Scraper?
The Livestock Manure Scraper is a mechanical system that automatically or semi-automatically removes manure from animal barns, alleys, or pits. It typically consists of a scraper blade, drive unit, control system, and steel cables or chains. This system ensures constant cleanliness by pushing or pulling manure toward the collection point, reducing manual labor and improving farm hygiene.
Whether used in dairy barns or pig farms, a manure scraper system helps prevent disease, improve air quality, and protect livestock health. It is a vital component of an Intelligent Mechanical Scraper setup designed for large-scale and intensive farming environments.
Production Details
Chain model: 13×39mm;
Chain material: 20Mn2, the chain adopts national standard lifting manganese steel G80 (20MN2) with a maximum lifting capacity of 6 tons
Scraper and crossbar/drive base material: Q235 steel hot-dip galvanized treatment
Corner wheel specifications/materials
Specifications: outer diameter 280mm inner diameter 30mm;
Material: Q235 steel Hot-dip galvanizing treatment
Outer diameter 280mm inner diameter 30mm
Angle wheel bearing graphite copper sleeve
Equipped with anti-slip device
Electrical control system
Electrical control box: waterproof level ≥IP55 meets the national standard of electrical cabinets, adopts first-line brand electronic components, stable operation, high precision, long life, with manual, automatic, anti-freeze, fault alarm, hanging cattle stop and other functions
The intelligent cattle farm manure scraper is the most widely used, lowest cost, environmentally friendly and pollution-free ideal manure cleaning equipment. It has become the standard manure cleaning equipment for newly built standard cattle sheds. Compared with traditional manual and shovel trucks, it significantly reduces the manure cleaning cost of farms.

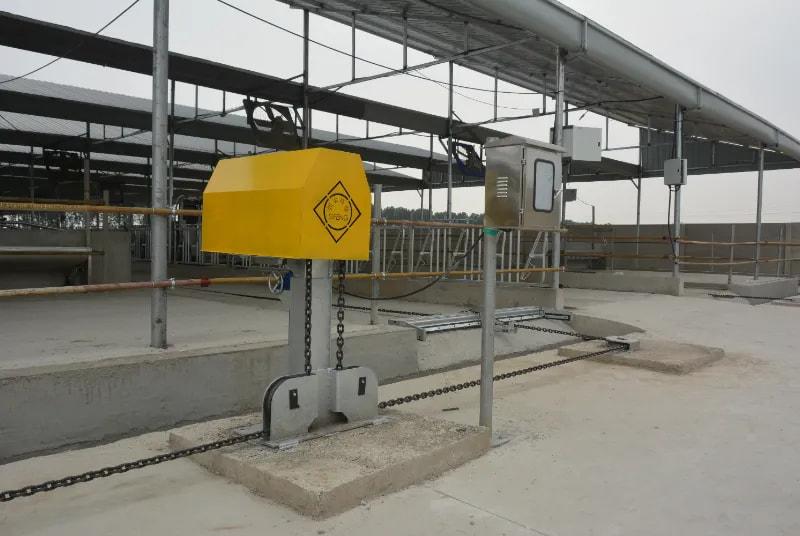

Working Principle
A drive motor drives two scrapers via a chain, forming a closed loop. As one scraper moves forward to clear manure, the other lifts and moves backward to clear it. The speed is constant, and angle casters are located around the loop for positioning and steering. This combined manure scraper provides 24-hour manure cleaning, ensuring high hygiene, easy installation, and a long service life.
Key Features and Advantages
The 9FQ3500 manure scraper works stably. A single unit can serve cattle sheds within 200 meters of manure channels. It has high working efficiency and can operate stably for a long time. It also sets an antifreeze mode for the cold winter to ensure normal operation throughout the year.
The equipment fully considers the impact of mechanical parts on cattle. The equipment has low working noise, and the parts that may contact cattle are softened to reduce damage to cattle.
During the reciprocating cleaning movement, if there is an accident of collision with cattle, the equipment will automatically stop and sound an alarm, and there will be no scraping of cattle.
The equipment is made of excellent materials, high-tension chain, strong-power gear reducer, and multi-corrosion-resistant main frame. Extra-thick manure scraper rubber. Everything is considered for the customers to ensure that the equipment can serve the ranch efficiently and powerfully.
Applications in Modern Livestock Farms
Our Livestock Manure Scraper systems are widely used in:
Dairy farms: Maintaining clean and dry floors to improve milk hygiene.
Pig farms: Efficiently removing manure from narrow alleys or under-floor pits.
Beef cattle barns: Handling high manure volumes with heavy-duty chain systems.
Goat and sheep farms: Custom scraper configurations for lighter loads.
Sifeng Environmental works with farm designers and system integrators to offer tailor-made automatic manure scraper solutions that meet different livestock housing requirements.
Maintenance and Operation
To ensure reliable performance, each manure scraper system is designed for easy maintenance:
Regularly check cable tension and blade wear.
Keep the drive unit lubricated and clean.
Use automatic safety switches to prevent overloads.
Schedule cleaning cycles through the smart controller.
Proper maintenance extends the scraper’s service life and ensures consistent cleaning efficiency.
Manure Scraper Parameter
For more information, please visit our website.
Equipment Parameters
Drive unit: manure channel length ≤ 100 meters, equipped with R97-1.5-4P hard-toothed surface reducer
100 meters ≤ manure channel length ≤ 150 meters, equipped with R107-2.2-4P hard-toothed surface reducer
150 meters ≤ manure channel length ≤ 200 meters, equipped with R137-3-6P hard-toothed surface reducer
What Is a Livestock Manure Scraper?
The Livestock Manure Scraper is a mechanical system that automatically or semi-automatically removes manure from animal barns, alleys, or pits. It typically consists of a scraper blade, drive unit, control system, and steel cables or chains. This system ensures constant cleanliness by pushing or pulling manure toward the collection point, reducing manual labor and improving farm hygiene.
Whether used in dairy barns or pig farms, a manure scraper system helps prevent disease, improve air quality, and protect livestock health. It is a vital component of an Intelligent Mechanical Scraper setup designed for large-scale and intensive farming environments.
Production Details
Chain model: 13×39mm;
Chain material: 20Mn2, the chain adopts national standard lifting manganese steel G80 (20MN2) with a maximum lifting capacity of 6 tons
Scraper and crossbar/drive base material: Q235 steel hot-dip galvanized treatment
Corner wheel specifications/materials
Specifications: outer diameter 280mm inner diameter 30mm;
Material: Q235 steel Hot-dip galvanizing treatment
Outer diameter 280mm inner diameter 30mm
Angle wheel bearing graphite copper sleeve
Equipped with anti-slip device
Electrical control system
Electrical control box: waterproof level ≥IP55 meets the national standard of electrical cabinets, adopts first-line brand electronic components, stable operation, high precision, long life, with manual, automatic, anti-freeze, fault alarm, hanging cattle stop and other functions
The intelligent cattle farm manure scraper is the most widely used, lowest cost, environmentally friendly and pollution-free ideal manure cleaning equipment. It has become the standard manure cleaning equipment for newly built standard cattle sheds. Compared with traditional manual and shovel trucks, it significantly reduces the manure cleaning cost of farms.
Working Principle
A drive motor drives two scrapers via a chain, forming a closed loop. As one scraper moves forward to clear manure, the other lifts and moves backward to clear it. The speed is constant, and angle casters are located around the loop for positioning and steering. This combined manure scraper provides 24-hour manure cleaning, ensuring high hygiene, easy installation, and a long service life.
Key Features and Advantages
The 9FQ3500 manure scraper works stably. A single unit can serve cattle sheds within 200 meters of manure channels. It has high working efficiency and can operate stably for a long time. It also sets an antifreeze mode for the cold winter to ensure normal operation throughout the year.
The equipment fully considers the impact of mechanical parts on cattle. The equipment has low working noise, and the parts that may contact cattle are softened to reduce damage to cattle.
During the reciprocating cleaning movement, if there is an accident of collision with cattle, the equipment will automatically stop and sound an alarm, and there will be no scraping of cattle.
The equipment is made of excellent materials, high-tension chain, strong-power gear reducer, and multi-corrosion-resistant main frame. Extra-thick manure scraper rubber. Everything is considered for the customers to ensure that the equipment can serve the ranch efficiently and powerfully.
Applications in Modern Livestock Farms
Our Livestock Manure Scraper systems are widely used in:
Dairy farms: Maintaining clean and dry floors to improve milk hygiene.
Pig farms: Efficiently removing manure from narrow alleys or under-floor pits.
Beef cattle barns: Handling high manure volumes with heavy-duty chain systems.
Goat and sheep farms: Custom scraper configurations for lighter loads.
Sifeng Environmental works with farm designers and system integrators to offer tailor-made automatic manure scraper solutions that meet different livestock housing requirements.
Maintenance and Operation
To ensure reliable performance, each manure scraper system is designed for easy maintenance:
Regularly check cable tension and blade wear.
Keep the drive unit lubricated and clean.
Use automatic safety switches to prevent overloads.
Schedule cleaning cycles through the smart controller.
Proper maintenance extends the scraper’s service life and ensures consistent cleaning efficiency.
Manure Scraper Parameter
Model | Driven Unit | Equipment material | Harmless design | Electronic control system |
9 FQ - 3500 | Manure channel≤100 meters, Match R97-1.5-4P hard tooth surface reducer 100M≤manure channel≤150M, Match R107-2.2-4P hard tooth surface reducer 150M≤Manure channel≤200M, Match R137-3-6P hard tooth surface reducer Speed 5.4 RPM | Chain Model: 13×39; Chain Material: 20Mn2, Lifting manganese steel G80 (20MN2) with a maximum lifting capacity 6 tons Scraper and crossbar/driving base Material: Carbon steel Q235 with dip galvanized Corner wheel specification/Material Specification: OD280mm ID30mm; Material: Carbon steel Q235 with dip galvanized OD 280mm ID30mmCorner wheel bearing: graphite copper bushing, equipped with anti-extraction device | All parts that can contact with cattle (including the main frame and the movable arm of the working flap) are smooth and avoid to injure the cattle. | Electric control box: Waterproof grade≥IP55, Meet the national standard Feeding in and out method: bottom in and bottom outworking stably with high precision and long life. Electronic control system with functions of manual, automatic, anti-freeze, fault alarm, hanging cattle stop, etc. |
For more information, please visit our website.
