FLP-6035 Pipe Profile Fiber Laser
Price:

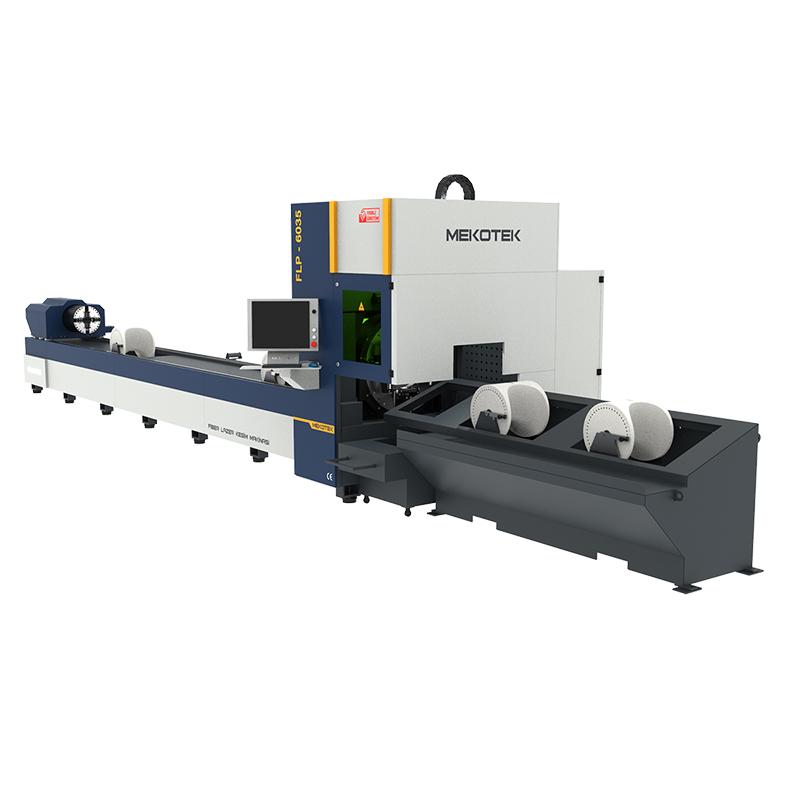

FLP-6035 Pipe Profile Fiber Laser
FLP-6035 fiber laser tube profile cutting machine. It is a small and medium-sized metal laser tube profile cutting machine with production power of 1000w, 2000w, 3000w, 4000w, 6000w. Maximum cutting length 6000mm, diameter 350mm! Fiber laser cutting machine is our product with very competitive price.
Technical Specifications
FLP-6035 fiber laser cutting machine for tubes is capable of cutting tube profiles with diameter of 6100mm, Yaskawa or Delta servo motor system, 7000kg steel precision machining fuselage.
FLP-6020 Cutting Thickness
Wanxuan Laser offers advanced pipe profile fiber laser machines designed to meet the growing demand for precision tube and pipe cutting in a wide range of industries. Whether you're processing round, square, or irregular pipes, our fiber laser tube cutting machine delivers unmatched efficiency, accuracy, and speed.
As a professional pipe profiling laser cutter manufacturer, we provide turnkey solutions tailored to your material, thickness, and production volume.
FLP-6035 fiber laser tube profile cutting machine. It is a small and medium-sized metal laser tube profile cutting machine with production power of 1000w, 2000w, 3000w, 4000w, 6000w. Maximum cutting length 6000mm, diameter 350mm! Fiber laser cutting machine is our product with very competitive price.
Technical Specifications
FLP-6035 fiber laser cutting machine for tubes is capable of cutting tube profiles with diameter of 6100mm, Yaskawa or Delta servo motor system, 7000kg steel precision machining fuselage.
Feature | |
Maximum Load Capacity (Sheet/Profile) | 850 kg |
Z-Axis Travel (mm) | 240 mm |
XYZ Axis Slide | 4-point ball contact / 4-point ball cage |
XY Axis Drive System | Frame / Frame |
Z-Axis Drive System | Ball screw / Ball screw |
XY Axis Speed (Maximum Speed) | 80 m/min |
Z-Axis Speed (m/min) | 30 m/min |
XY Positioning Accuracy (mm) | ±0.05 mm |
XY Repetition Accuracy (mm) | ±0.03 mm |
Maximum Profile Length (mm) | 6100 mm |
Maximum Profile Size (mm) | Ø350 mm |
Laser Resonator | Han’s Laser / Raycus / MAX |
Laser Power | 1000W,1500W,2000W,3000W,4000W,6000W,12000W,20000W,30000W,40000etc |
CNC System | Cypcut / ESA / Mekotek |
Laser Cutting Head | BOCI / Han’s / Raytools |
Auxiliary Cutting Gas | Air / Oxygen / Nitrogen |
Cooling Method | Water cooling / Air cooling |
Machine Weight (kg) | 7000 kg |
Machine Dimensions (mm) | 2670 × 11000 × 2370 mm |
Graphic Formats | DWG / DXF / STP |
Voltage/Frequency | 380V，220V /50 Hz，60Hz |
Certificates | CE / ISO |
Warranty | 2 years |
FLP-6020 Cutting Thickness
Thickness (mm) | 1000W | 2000W | 3000W | 4000W |
Carbon Steel | 8 mm | 12 mm | 15 mm | 18 mm (Maximum 20 mm) |
Stainless Steel | 3 mm | 5 mm | 6 mm | 8 mm (Maximum 10 mm) |
Aluminum | 2 mm | 3 mm | 4 mm | 6 mm (Maximum 8 mm) |
Meter | 2 mm | 3 mm | 4 mm | 6 mm |
Wanxuan Laser offers advanced pipe profile fiber laser machines designed to meet the growing demand for precision tube and pipe cutting in a wide range of industries. Whether you're processing round, square, or irregular pipes, our fiber laser tube cutting machine delivers unmatched efficiency, accuracy, and speed.
As a professional pipe profiling laser cutter manufacturer, we provide turnkey solutions tailored to your material, thickness, and production volume.
