FLO-P-2040 Open Pipe Profile Fiber Laser
Price:

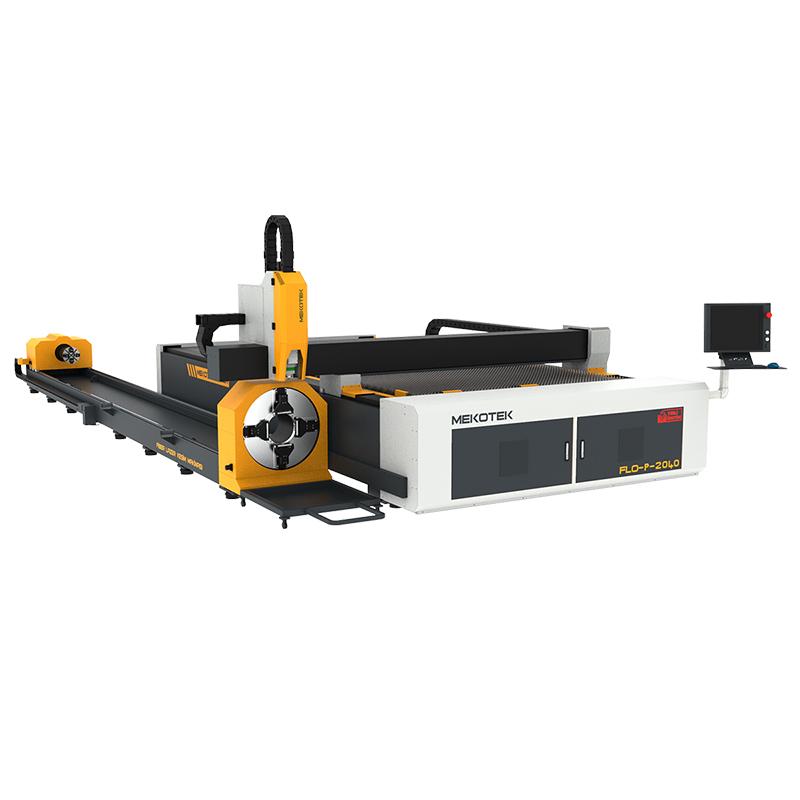

FLO-P-2040 Open Pipe Profile Fiber Laser
FLO-P-2040 open single table, pipe profile metal fiber laser cutting machine. It is the first choice for small and medium-sized metal laser cutting companies. The cheapest fiber laser cutting, the best performance metal laser cutting machine! It is a 1000W, 2000W, 3000W power fiber laser cutting machine.
Technical Specifications
FLO 2040 fiber laser cutting machine open table, cutting area 2000×4000 mm, overall dimensions 3830×8920×1980 mm, pipe overall dimensions 6100×200 mm, Raycus fiber laser source, Aram and Japanese mechanical parts Japan Smc or German Festo pneumatic system, Spanish Fagor or Far East Cypcut, control system uses Weihong, Mpower, Yaskawa or Delta servo motor system, 5500 kg steel precision processing body.
FLO-P-2040 Technical Specifications
FLO-P-2040 Cutting Thickness
At Wanxuan Laser, we provide advanced open laser cutting machine solutions that combine speed, precision, and flexibility. Our machines are designed to meet the evolving needs of modern metal fabrication industries. As a trusted open fiber laser supplier, we understand that efficiency and accessibility are key to high-volume production.
FLO-P-2040 open single table, pipe profile metal fiber laser cutting machine. It is the first choice for small and medium-sized metal laser cutting companies. The cheapest fiber laser cutting, the best performance metal laser cutting machine! It is a 1000W, 2000W, 3000W power fiber laser cutting machine.
Technical Specifications
FLO 2040 fiber laser cutting machine open table, cutting area 2000×4000 mm, overall dimensions 3830×8920×1980 mm, pipe overall dimensions 6100×200 mm, Raycus fiber laser source, Aram and Japanese mechanical parts Japan Smc or German Festo pneumatic system, Spanish Fagor or Far East Cypcut, control system uses Weihong, Mpower, Yaskawa or Delta servo motor system, 5500 kg steel precision processing body.
FLO-P-2040 Technical Specifications
Feature | |
Working Area (mm) | 2000x4000 mm |
Maximum Loading Capacity (Plate/Profile) (kg) | 1200 / 350 kg |
XY Axis Travel (mm) | 2020x4050 mm |
Z Axis Travel (mm) | 400 mm |
XYZ Axis Slide | 4-Point Contact Ball / 4-Point Ball Cage |
XY Axis Drive System | Rack and Pinion / Rack and Pinion |
Z Axis Drive System | Ball Screw / Ball Screw |
XY Axis Speed (Composite Speed) (m/min) | 80 m/min |
Z Axis Speed (m/min) | 30 m/min |
XY Positioning Accuracy (mm) | ±0.05 mm |
XY Repetition Accuracy (mm) | ±0.03 mm |
Max. Profile Length (mm) | 6100 mm |
Max. Profile Diameter (mm) | Ø220 mm |
Laser Resonator | Han's Laser / Raycus / MAX |
Laser Power | 1000W,1500W,2000W,3000W,4000W,6000W,12000W,20000W,30000W,40000etc |
CNC System | Cypcut / ESA / Mekotek |
Laser Cutting Head | BOCI / Han’s / Raytools |
Assist Gas for Cutting | Air / Oxygen / Nitrogen - Air / Oxygen / Nitrogen |
Cooling Method | Water cooling / Air cooling |
Machine Weight (kg) | 5500 kg |
Machine Dimensions (mm) | 3700x8667x1980 mm |
Graphic Format | dwg/dxf/stp |
Voltage/Frequency | 380V，220V /50 Hz，60Hz |
Certificates | CE / ISO |
Warranty | 2 Years / 2 Years |
FLO-P-2040 Cutting Thickness
Material | 1000 W | 2000 W | 3000 W | 4000 W |
Carbon Steel | 8 mm | 12 mm | 15 mm | 18 (Max. 20) mm |
Stainless Steel | 3 mm | 5 mm | 6 mm | 8 (Max. 10) mm |
Aluminum | 2 mm | 3 mm | 4 mm | 6 (Max. 8) mm |
Meter | 2 mm | 3 mm | 4 mm | 6 mm |
At Wanxuan Laser, we provide advanced open laser cutting machine solutions that combine speed, precision, and flexibility. Our machines are designed to meet the evolving needs of modern metal fabrication industries. As a trusted open fiber laser supplier, we understand that efficiency and accessibility are key to high-volume production.
