BGO Scintillation Crystal Bismuth Germanate
Price:

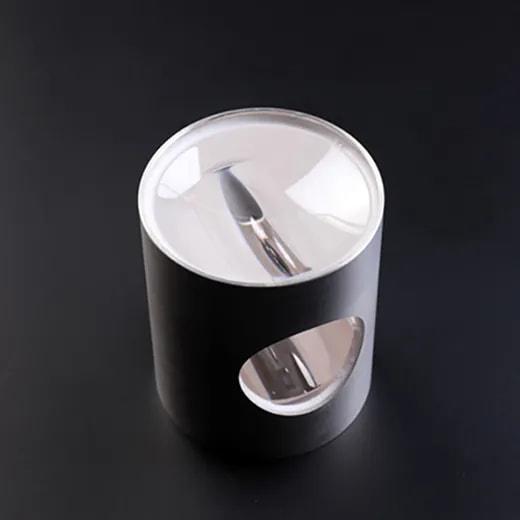

BGO Scintillation Crystal Bismuth Germanate
BGO (Bismuth Germanate) is a high-Z, high-density scintillating crystal. The material has a high atomic number (Z=83 for bismuth) and a density of 7.13 g/cm³, making it a highly efficient gamma-ray absorber.
Due to the high-Z properties of the material, the gamma-ray-induced light absorption fraction is significantly enhanced, resulting in an excellent peak-to-total ratio.
Specification Parameter
BGO (Bismuth Germanate, Bi₄Ge₃O₁₂) is a high-density, high-Z inorganic scintillator crystal renowned for its excellent gamma-ray stopping power, good energy resolution, and strong radiation resistance. The BGO crystal is widely used in applications such as positron emission tomography (PET), high-energy physics experiments, and industrial gamma-ray detection.
EBO offers flexible customization of BGO crystals in terms of size, shape, and geometry to meet specific customer requirements. In addition to single crystals, EBO also provides tailored scintillator array configurations for various applications. EBO's manufacturing capabilities support array pixel sizes as small as 0.2 × 0.2 mm, enabling high-resolution imaging.
Common internal reflective materials include BaSO₄, ESR, and E20 reflective film. These can be selected or recommended based on the application environment to optimize light collection efficiency and overall system performance.
Advantage of BGO Crystal
Unique BaSO4 reflector coating
High precision matching
Quality control of each crystal
Application of BGO Crystal
Low-cost PET
Small animal PET
Organ-specific PET
Particle detection
Radiation detection
Typical Sizes and Configurations of BGO Crystal
Available in large sizes and variable shapes
Typical detector sizes range from 1" to 5" and can be up to 5" thick
Other shapes; cube, hexagon
pixels (as small as 0.5 mm2) or for arrays as small as 0.3 mm
If you are looking for more details, kindly visit our website.
BGO (Bismuth Germanate) is a high-Z, high-density scintillating crystal. The material has a high atomic number (Z=83 for bismuth) and a density of 7.13 g/cm³, making it a highly efficient gamma-ray absorber.
Due to the high-Z properties of the material, the gamma-ray-induced light absorption fraction is significantly enhanced, resulting in an excellent peak-to-total ratio.
Specification Parameter
Properties | Value | Unit |
Density | 7.13 | g/cm³ |
Melting point | 1323 | K |
Effective atomic number | 74 | |
Hardness | 5 | Mohs |
Refractive index | 2.15 | |
Decay Constant | 317 | ns |
Radiation length | 1.1 | cm |
Wavelength of emission max | 480 | nm |
Light yield | 8500 | Photon/Mev |
Hygroscopic | No |
BGO (Bismuth Germanate, Bi₄Ge₃O₁₂) is a high-density, high-Z inorganic scintillator crystal renowned for its excellent gamma-ray stopping power, good energy resolution, and strong radiation resistance. The BGO crystal is widely used in applications such as positron emission tomography (PET), high-energy physics experiments, and industrial gamma-ray detection.
EBO offers flexible customization of BGO crystals in terms of size, shape, and geometry to meet specific customer requirements. In addition to single crystals, EBO also provides tailored scintillator array configurations for various applications. EBO's manufacturing capabilities support array pixel sizes as small as 0.2 × 0.2 mm, enabling high-resolution imaging.
Common internal reflective materials include BaSO₄, ESR, and E20 reflective film. These can be selected or recommended based on the application environment to optimize light collection efficiency and overall system performance.
Advantage of BGO Crystal
Unique BaSO4 reflector coating
High precision matching
Quality control of each crystal
Application of BGO Crystal
Low-cost PET
Small animal PET
Organ-specific PET
Particle detection
Radiation detection
Typical Sizes and Configurations of BGO Crystal
Available in large sizes and variable shapes
Typical detector sizes range from 1" to 5" and can be up to 5" thick
Other shapes; cube, hexagon
pixels (as small as 0.5 mm2) or for arrays as small as 0.3 mm
If you are looking for more details, kindly visit our website.
