Harmonic Drive Gearbox
Price:
Harmonic Drive Gearbox

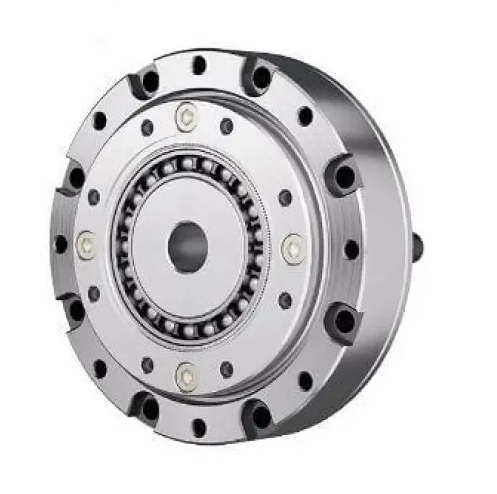

The LHT-8 and LHT-11 are the latest additions to the LHT series, featuring lightweight and flat structural designs. These compact products are equipped with a hollow flanged standard structure for the flexible wheel, which is connected to the steel wheel via a highly rigid cross roller bearing. This makes them particularly suitable for small robots or devices requiring ultra-compact solutions.
Product Description
Featrues:
1. Hollow and flat shape
2. Compact and streamlined design
3. Zero backlash
4. High rigidity
5. Coaxial input and output
6. Excellent positioning and rotational accuracy
7. Coaxial input and output shaft
8. Direct motor connection and easy installation
Typical Model Data:
Reduction Box – Industrial Gear Reducer Solutions by Leading Gear Reducer Manufacturers
Power Jack Motion Industrial Gear Reducer is a cutting-edge solution for precise torque reduction and efficient motion control. Designed for high-demand applications, our Industrial Gear Reducer meets the rigorous standards of modern industries, ensuring superior performance and reliability right from the very first cycle.
A gearbox is a mechanical device that transfers energy from one device to another. It is used to change the speed (RPM) or the output torque of a motor. It is also known as gear reducer, speed reducers or gearhead. It has applications across a wide range of industries. For example, a gearbox is used to offer loads in the power transmission industry. On the other hand, motion control or servo industry might use it for handling dynamic motion applications.
A gearbox can provide reliable power transmission as you can monitor the speed ratio by adjusting the relative number of teeth. Based on the shape and structure, the gearbox can be classified into several types such as spur, helical, bevel, worm, and planetary gearboxes. Based on transmission ratio, speed, lubrication requirements, reliability, cost, and transmission efficiency, different gear structures have unique advantages and disadvantages. We are a leading gearbox manufacturer supplying a large selection of gearboxes to meet your specific requirements and applications.
Learn about the latest products in the https://www.pjmautomation.com/products.html
The LHT-8 and LHT-11 are the latest additions to the LHT series, featuring lightweight and flat structural designs. These compact products are equipped with a hollow flanged standard structure for the flexible wheel, which is connected to the steel wheel via a highly rigid cross roller bearing. This makes them particularly suitable for small robots or devices requiring ultra-compact solutions.
Product Description
Featrues:
1. Hollow and flat shape
2. Compact and streamlined design
3. Zero backlash
4. High rigidity
5. Coaxial input and output
6. Excellent positioning and rotational accuracy
7. Coaxial input and output shaft
8. Direct motor connection and easy installation
Typical Model Data:
Model | Ratio | Rated toruqe at 2000r/min input | Permissible peak torque at start and stop | Permissible max value for average load Torque | Permissible max momentary torque | Max input speed | Average load speed | Backlash | Weight | Life | ||||
Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
8 | 50 | 1.8 | 0.18 | 3.3 | 0.34 | 2.3 | 0.23 | 6.6 | 0.67 | 8500 | 3500 | ≤40 | LHT-I:0.06 | 10000 |
100 | 2.4 | 0.24 | 4.8 | 0.49 | 3.3 | 0.34 | 9 | 0.92 | 10000 | |||||
11 | 50 | 3.5 | 0.36 | 8.3 | 0.85 | 5.5 | 0.56 | 17 | 1.73 | 8500 | 3500 | ≤20 | LHT-I:0.27 | 10000 |
80 | 4.5 | 0.46 | 9.9 | 1.01 | 8 | 0.82 | 22.5 | 2.3 | 10000 | |||||
100 | 5 | 0.51 | 11 | 1.12 | 8.9 | 0.91 | 25 | 2.55 | 10000 |
Reduction Box – Industrial Gear Reducer Solutions by Leading Gear Reducer Manufacturers
Power Jack Motion Industrial Gear Reducer is a cutting-edge solution for precise torque reduction and efficient motion control. Designed for high-demand applications, our Industrial Gear Reducer meets the rigorous standards of modern industries, ensuring superior performance and reliability right from the very first cycle.
A gearbox is a mechanical device that transfers energy from one device to another. It is used to change the speed (RPM) or the output torque of a motor. It is also known as gear reducer, speed reducers or gearhead. It has applications across a wide range of industries. For example, a gearbox is used to offer loads in the power transmission industry. On the other hand, motion control or servo industry might use it for handling dynamic motion applications.
A gearbox can provide reliable power transmission as you can monitor the speed ratio by adjusting the relative number of teeth. Based on the shape and structure, the gearbox can be classified into several types such as spur, helical, bevel, worm, and planetary gearboxes. Based on transmission ratio, speed, lubrication requirements, reliability, cost, and transmission efficiency, different gear structures have unique advantages and disadvantages. We are a leading gearbox manufacturer supplying a large selection of gearboxes to meet your specific requirements and applications.
Learn about the latest products in the https://www.pjmautomation.com/products.html
