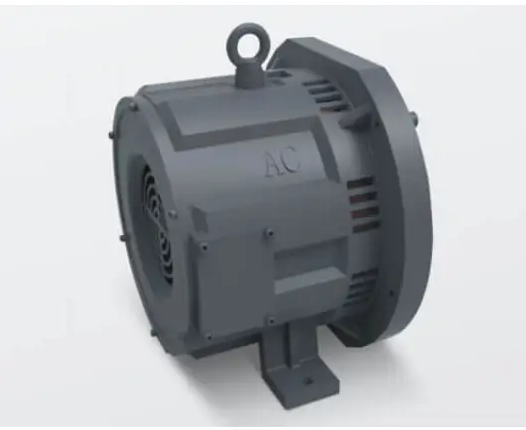

Integared Screw Compressor PMSM Motor
Price:
Integared Screw Compressor PMSM Motor
ZPM series PMSM motors are designed to integrate with screw compressor. PMSM rotor mounted directly on compressor main shaft. No coupling and gearbox. Well optimized and compact Integrated Screw Compressor Motor.
Product Description
Higher efficiency of IE5 class. Excellent stator and rotor design. Super strong permanent magnet materials and imported bearings. Precision-machined flange interface with compressor housing. IP66 protection for oil/gas environments. The motor power range from 7.5KW to 37KW on stock. It can achieve wide-frequency speed regulation operation to save energy. The cooling methods can be air cooling or oil cooling.
Typical applications: Hydrocarbon processing compressors; HVAC screw chillers; Industrial air systems.
Performance data:
Vol: 380V
Rated Speed: 3000-3600 RPM
Rated Power: 7.5KW/11KW/15KW/22KW/37KW
Rate Current: 13A-68.2A
Rate Torque: 20Nm-118Nm
Insulation Class: H
Industrial Electric Motors provided by Power Jack Motion deliver unmatched performance and durability in demanding industrial environments. Engineered for efficiency and reliability, our Industrial Electric Motors are the backbone of modern machinery. With a competitive Electric Motor Price, our products cater to a wide range of applications—from Powerful DC Motor solutions and Variable Speed Electric Motors to High Torque Electric Motors—making us a trusted choice among top Electric Motor Manufacturers and a leading Electric Motor Supplier.
For more information, please visit our website.
ZPM series PMSM motors are designed to integrate with screw compressor. PMSM rotor mounted directly on compressor main shaft. No coupling and gearbox. Well optimized and compact Integrated Screw Compressor Motor.
Product Description
Higher efficiency of IE5 class. Excellent stator and rotor design. Super strong permanent magnet materials and imported bearings. Precision-machined flange interface with compressor housing. IP66 protection for oil/gas environments. The motor power range from 7.5KW to 37KW on stock. It can achieve wide-frequency speed regulation operation to save energy. The cooling methods can be air cooling or oil cooling.
Typical applications: Hydrocarbon processing compressors; HVAC screw chillers; Industrial air systems.
Performance data:
Vol: 380V
Rated Speed: 3000-3600 RPM
Rated Power: 7.5KW/11KW/15KW/22KW/37KW
Rate Current: 13A-68.2A
Rate Torque: 20Nm-118Nm
Insulation Class: H
Industrial Electric Motors provided by Power Jack Motion deliver unmatched performance and durability in demanding industrial environments. Engineered for efficiency and reliability, our Industrial Electric Motors are the backbone of modern machinery. With a competitive Electric Motor Price, our products cater to a wide range of applications—from Powerful DC Motor solutions and Variable Speed Electric Motors to High Torque Electric Motors—making us a trusted choice among top Electric Motor Manufacturers and a leading Electric Motor Supplier.
For more information, please visit our website.
