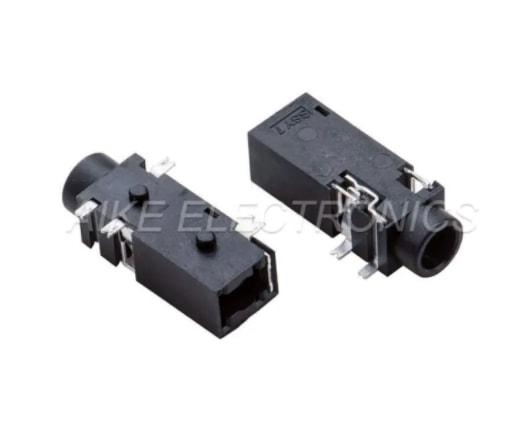

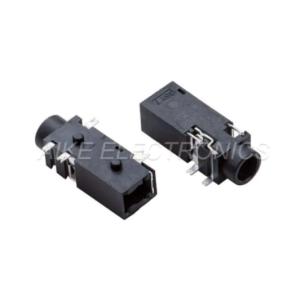

SMT Contacts 3.5mm Audio Jack Port( Phone Jack)
Price:
3.5mm Audio Jack Port
Belongs to the connector field, Audio Jack is applied to Audio signal with different designs. The Audio jack connector for laptop computers, commonly known as the headphone socket, is the other end that fits into the earplugs.(can also be used in mobile phones, tablets, etc.) reliable design, proven and applied
Audio Jack Connectors
The audio jack is an industry standard connector that has many potential uses beyond providing a basic audio connection. 2.5 mm or 3.5 mm audio jacks are common in smartphones, media players, hi-fi devices and many other devices. It can be used not only for easy connection of external speakers or headphones, but also for smartphone selfie sticks equipped with a camera shutter release button.
What types of audio connectors are there?
1. Analog audio interface
TRS interface (large / small three-core), RCA Lotus head, XLR Canon port, etc.
2. Digital audio interface
AES / EBU interface, S / PDIF interface, coaxial interface, RCA coaxial interface and BNC coaxial interface, optical interface.
Belongs to the connector field, Audio Jack is applied to Audio signal with different designs. The Audio jack connector for laptop computers, commonly known as the headphone socket, is the other end that fits into the earplugs.(can also be used in mobile phones, tablets, etc.) reliable design, proven and applied
Type | 3.5mm Audio Jack( Phone Jack), Receptable, SMT contacts, with 2 position hosts |
Contact | 3.5mm Plug |
Materials | For housing can be PBT,LCP,PA9Tand so on For Contact normally can be Copper. |
Colour | Black or Customized Color |
Plating | For Contact,Au,Ni,and Tin Plating |
Plating Thickness | For Contact, 1U',3U'5U'15U',30U' or Higher It depands on custoer request |
Rating | DC 30V 0.5A |
Contact resistance | ≤50 mΩ |
Insulation resistance | ≥100MΩ(DC250V) |
Withstand voltage | 500VAC |
Insertion and Extraction force | 3-25N |
Life test | 5,000 cycles |
Application | Computer, Mobile,Earphones and other equipment |
Package | Normally Tape & Reel Package Or Customized Package |
Delivery Time | Usually 25-35 days after receiving the 30% deposit |
Payment terms | TT, L/C, DP or Negotiable |
Note | This part is only one sample for this serious products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know. |
Audio Jack Connectors
The audio jack is an industry standard connector that has many potential uses beyond providing a basic audio connection. 2.5 mm or 3.5 mm audio jacks are common in smartphones, media players, hi-fi devices and many other devices. It can be used not only for easy connection of external speakers or headphones, but also for smartphone selfie sticks equipped with a camera shutter release button.
What types of audio connectors are there?
1. Analog audio interface
TRS interface (large / small three-core), RCA Lotus head, XLR Canon port, etc.
2. Digital audio interface
AES / EBU interface, S / PDIF interface, coaxial interface, RCA coaxial interface and BNC coaxial interface, optical interface.
