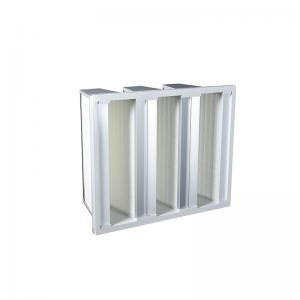

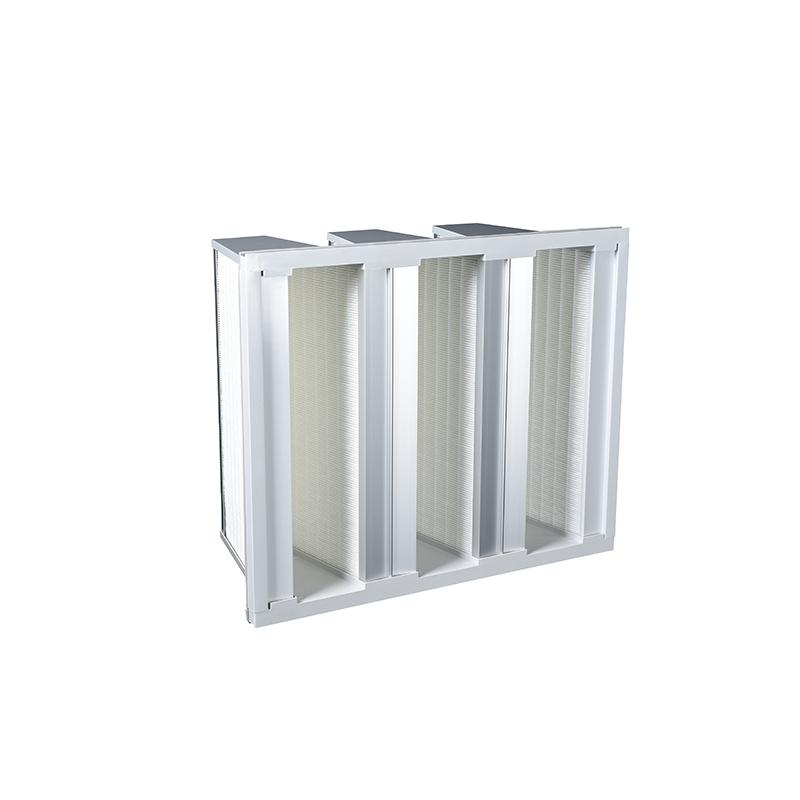

V-Bank Filter - Hospital Grade

Price:

HEPA H13 H14 filters are high-efficiency particulate air filters designed to capture and retain extremely fine particles, providing superior air quality in a variety of critical environments. These filters can remove up to 99.95% (H13) and 99.995% (H14) of airborne particles that are as small as 0.3 microns, including dust, pollen, mold spores, bacteria, and even some viruses.
Constructed using high-quality materials, HEPA H13 and H14 filters feature a dense network of fibers arranged in a pleated design, which maximizes the filtration surface area while maintaining a compact footprint. This design ensures high airflow rates and low resistance, making them ideal for applications in cleanrooms, pharmaceutical production, healthcare facilities, and other settings where maintaining ultra-clean air is crucial.
These filters are engineered to meet the strictest air quality standards, providing reliable performance and long service life. Easy to install and maintain, HEPA H13 and H14 filters are the preferred choice for environments that demand the highest levels of air purity and safety.

Detailed information:
Type: V-bank (3V, 4V, 5V), box type
Frame material: ABS, SUS304, Wood, Anodised extruded aluminum
Filter media: PTFE (Polytetrafluoroethylene) membrane
Gasket: PU gasket on both sides
Filter class: HEPA filters (H13/H14)
Initial resistance: ~50% lower than glass fibre
Standard size: 592 x 592mm, 490 x 592mm
Standard depth: 292 / 300 / 400 / 435mm

Material & Working Conditions:

Filter Media	Micro glass fiber, PP
Frame Material	ABS + PVC
Sealant	Polyurethane
Gasket	EVA,EPDM
Separator	Hot melt Glue
Standard Frame Size	292,296,330,400,435
Max. Working Temperature	70℃
Max. Working humidity	100%

No.	Width	Height	Depth	V	Flange Size	Note
	287	287/490/592/610	292	2	25
	490	287/490/592/610	292	3	25
	592	287/490/592/610	292	3	25
	594	292/594	292	3	20
	592	287/490/592/610	292	4	25
	592	287/490/592/610	400	4	25
	592	287/592	292	4	19	Wide-Body
	592	592	435	4	20
	590	287/592	292	4	20
	592	287/490/592/610	292	4	25	Four Sides Sealed
	592	287/490/592/610	292	5	25
	610	287/490/592/610	292	5	25
	592	592	330	5	20	Arc Shaped
	610	305/610	292	4	-	Box type
	610	305/610	292	6	-	Box type

Note: Customized Products Available (need to make mold first)

Technical Data

Model	Type	Size（mm）（HxWxD）	V	Air Flow（m³/h）	Initial Pressure（≤Pa） (Pa)	Filtration Area（m²）	Velocity（m/s）	Filter Class（EN779）	Filter Class（ISO16890）
YTZX	V Type	594x594x292	4		80	14.55	1.89	M6	ePM10 70%
		287x594x292	2	1200	80	7.28	1.96	M6	ePM10 70%
		594x490x292	4	1900	100	11.82	1.81	F7	ePM1 55%

Product FeaturesBenefits of production:
1. Quiet when working.
2. Stable performance.
3. Energy-saving.
4. PU gasket & protective net in both sides.

Benefits of our factory:
1. Cleanroom workshop.
2. 100% test in our laboratory.
3. Buyer can monitor working schedule in real time via mobile phone.

Custom Designed Mini Pleat Filters of Various Sizes, Shapes and Materials
