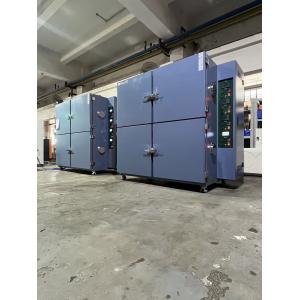

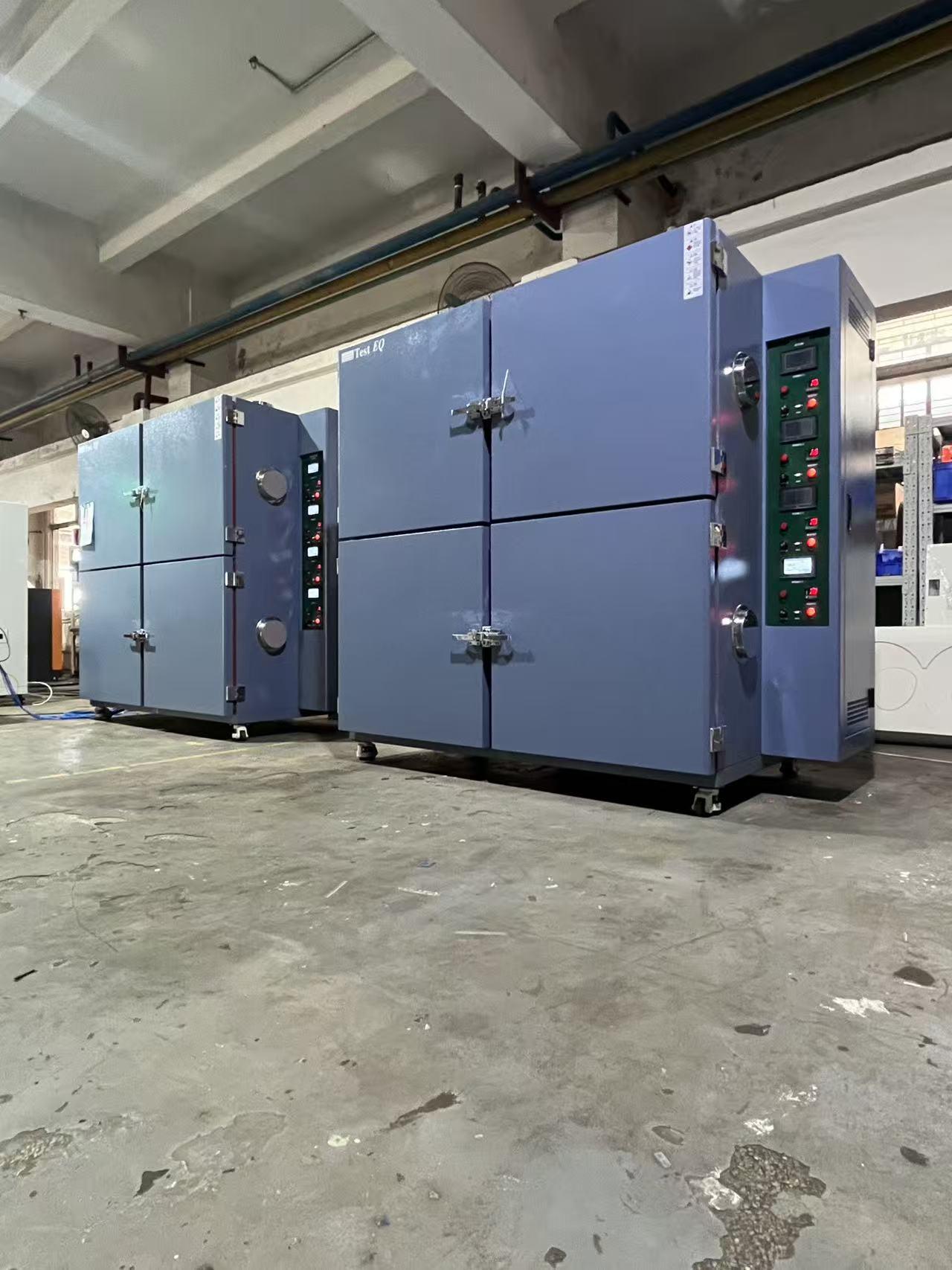

JOEO Industrial Vacuum Heating Oven Pharmaceutical Oven

Application
Industrial heating oven applications throughout the petroleum, chemical, metallurgical, mechanical, heat treatment, surface treatment, building materials, electronics, materials, light industry, daily chemical, pharmaceutical and many other industries ,such as paint baking, varnish baking, plastic particles, chemical desiccant and powder drying, electrode drying, Taflon coating, annealing, core hardening, aging or preheating.
If you need more models about our test equipment, please reference our chamber-testing（.）com
Description
JOEO's industrial heating oven is designed to test the limits of a product or component under varying degrees of heat (and sometimes even drying). Repeatable results and the associated product quality, minimal space requirements, short processing times and high levels of productivity are requirements in all areas of industrial production. With JOEO industrial heating oven, you can perform reliable, fast and energy efficient heat treatment of your components and materials at temperatures up to 400°C. That way, you can make great products.
JOEO industrial heating oven provide maximum interior space with minimal footprint. Thanks to the iE3 motor, improved insulation and a reliable door sealing concept, the oven is able to operate with maximum energy efficiency. Our industrial heating oven come standard with digital measurement and control systems and an innovative windows user interface. This simplifies the operation and monitoring of heating and drying furnaces.

Technical specification

Model     High Temperature Oven     HTO - 72     HTO - 150     HTO - 270     HTO - 672
Capacity(L)     72     150     270     672
Internal Dimension WxHxD (mm)     450x400x400     500x600x500     600x900x500     800x1200x700
External Dimension WxHxD (mm)     650x900x550     700x1200x650     850x1600x700     1200x1680x900
Temperature Range     RT～200℃;（300～600℃ is optional）
Temperature Analytic Accuracy/Distribution Uniformity     0.1℃/±2.0℃ ; (when temperature is 100℃)
Temperature Control Accuracy     ±0.5℃
Temperature Rising Speed Rate     Temperature rising speed rate : RT～200℃, Approx:35mins
Observation Glass Window     When temperature is RT～200C ,with observation glass widow
When temperature is 200℃～500C ,without observation glass widown
Power     AC220V;  1phase 3 lines; 50/60HZ
AC380V;  3phase 5 lines;  50/60HZ
