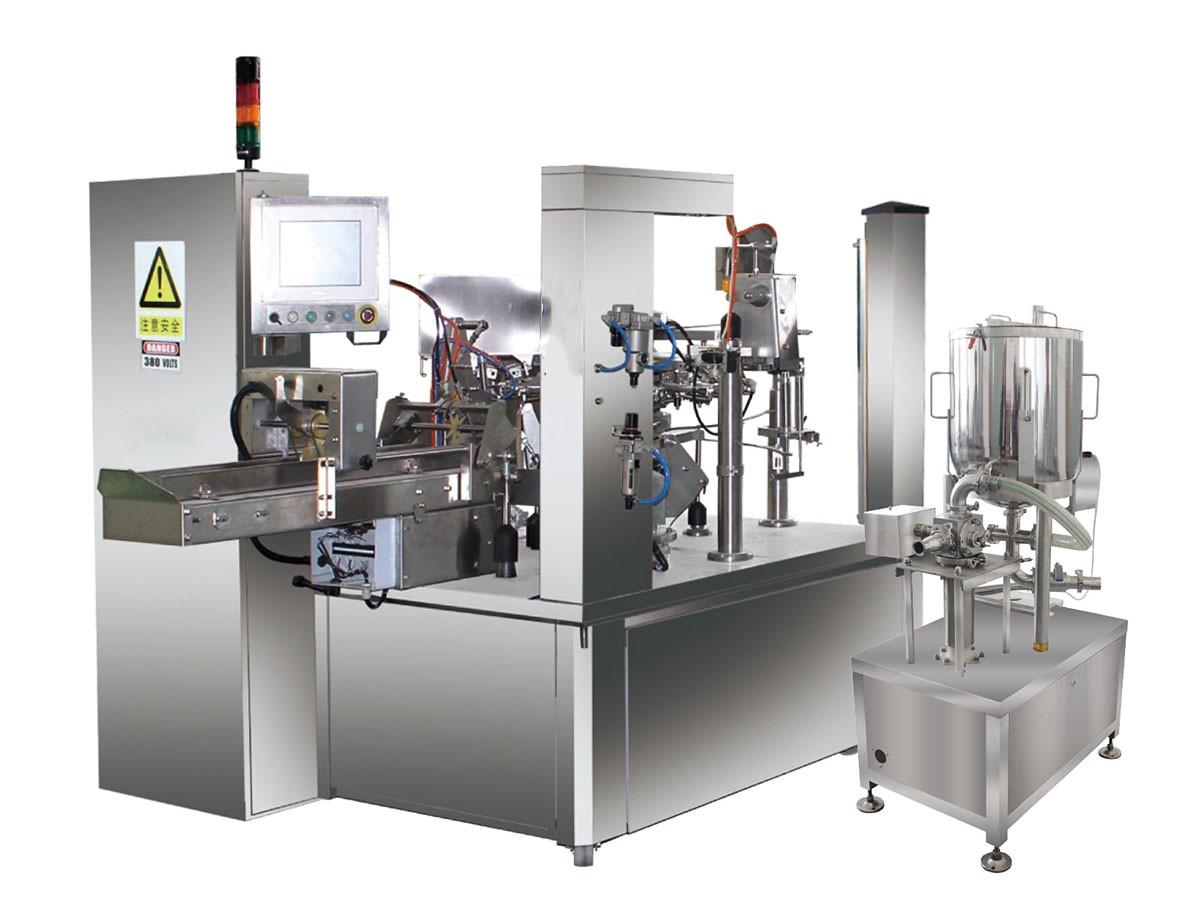

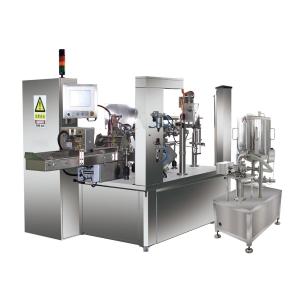

Powder Packaging Machine BT-10C
Price:
Technical Parameters
Application details：
Work process：
bag giving→date coding →bag opening →filling and vibrating 1→filling and vibrating2→bag mouth cleaning→heat sealing 1→heat sealing 2→forming and output
Bag sample：
Features：
| Model No. | BT-10C |
| Applications | Powder：seasoning powder, food additives, chemical raw materials, flour, etc |
| Pouch Size | Width: 210-350mm Length:210-600mm |
| Filling Weight | Max 5000g/bag |
| Filling Speed | 10-25bags/min(filling speed depend on the pouch type and pouch size) |
| Pouch Material | Single-PE, PE compound materials, CPP composite material, Aluminum foil, etc |

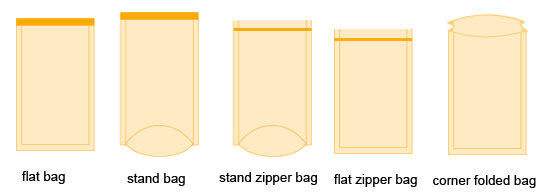

| Pouch types | Flat bag,stand bag,zipper bag,special-shaped bag |
| Machine Material | Machine base and appearance parts:SUS304/SUS 316 |
| Power | 380v, 3phase; 50/60HZ, 4.5KW |
| Air Compression | 500N Litre/min, 6kg/cm2 |
| Size of Machine(mm) | L2980xW2300xH2310 |
| Weight of Machine | About 3000kg |

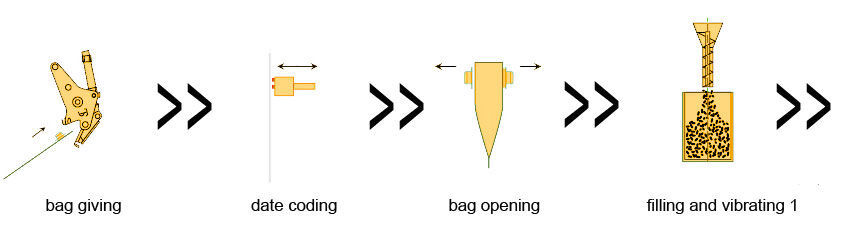

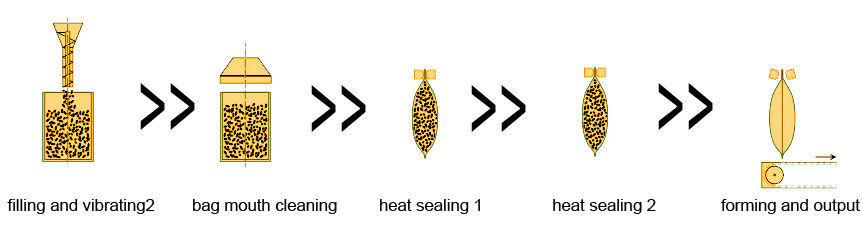

Work process：
bag giving→date coding →bag opening →filling and vibrating 1→filling and vibrating2→bag mouth cleaning→heat sealing 1→heat sealing 2→forming and output
Bag sample：
Features：
- Digital drive, self-diagnostic display system and Versatility.
- Large color touch screen： you just need to choose relevant products/ pouch size/pouch weight on it， will automatically adjust and take detection.
- Provide automatic warming and display the reason when any fault on screen, reduce staff maintenance difficulty
- Automatically add lubricating oil intelligently, and equipped with the function of ribbon code printer detection.
- Equipment can be washed with water directly after production.
