New Advanced Transformer Oil Purification and Regeneration

Introduction:

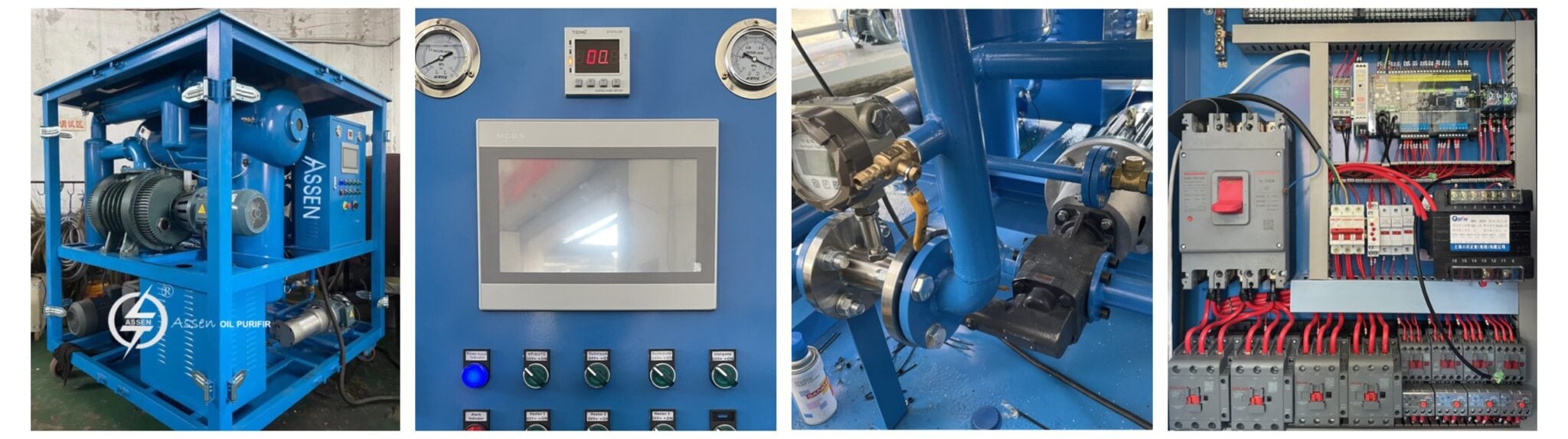

Transformer oil is very important to reliability, performance andlifetime of transformer. The oil should be free from moisture, dissolved gases,particles, etc. Even some new oils may require treatment to acceptable levelbefore injecting into the transformer; Our DVTP Series TransformerOil Purification Plant  is professional for treatment of transformer oil, it canefficiently remove water, gases, acid, particles, etc. from the oil. With theadvantages of high working vacuum, high filtration speed, oil qualityprotection, the filter advanced the oil treatment technique and equipmentperformance and once can raise the puncture voltage up to over 75KV.

DVTP Series oil purification and regeneration plant can be installed by sealedregular or movable with a trailer, so it is suitable to treat oil, fill oil invacuum chamber and circulating dry hot-oil when large transformer is beinginstalled and overhauled.



Performance:
Water Removal: Overall Water Content ≤
3 PPM by removing free, emulsified, and dissolvedwater.

Particulate Removal: Particle counts aslow as 1 micron.
Entrained Air and Gas Removal ≤
0.3%

Acid Removal: can be equipped withfullers earth towers to neutralize acid and Lower TAN to < 0.03 KOH/g
Dielectric Strength:≥
75 kV per ASTM 877



Technical Data:

Parameters	Unit	DVTP-30	DVTP-50	DVTP-100	DVTP-150	DVTP-200	DVTP-250	DVTP-300
Flow rate	L/min	30	50	100	150	200	250	300
Working vacuum	MPa	0.08 ～ 0.099
Working Pressure	MPa	≤0.3
Temperature Range	℃	20 ～ 80
Power		Three Phase 50HZ380V(as per the customer's requirements)
Working Noise	dB（ A ）	75	75	75	80	80	80	80
Heating Power	kW	30	30	45	60	75	90	120
Total Power	kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Inlet/Outlet	mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight	kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
Width	mm	750	800	950	950	1100	1200	1200
Height	mm	1350	1400	1500	1650	1800	1900	1900

Please contact us for more details.
