10G OTN Muxponder

Price: 100000

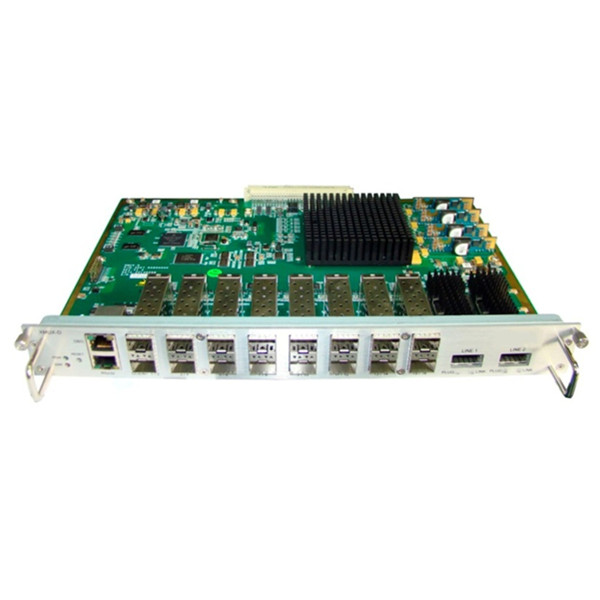

10G OTN muxponder is an 8x1.25G service convergence single-card launched by Sintai Communication Co., Ltd. Its main function is to converge the 4-channel 2.5G or 8-channel 1.25G services into 1-channel 10G services.

10G OTN muxponder and multiplexer Key Feature
Muxponder any data rata traffic to 10G traffic.

16 SFP ports, support any traffic 125Mbps to 5Gbps transparent, total max 20G traffic.

Support CPRI application, date rate: 4.9152Gb/s.

3.072 Gb/s,2.4576Gb/s,1.2288 Gb/s, 0.6144 Gb/s.

Lineside 2xXFP ports, support OC192/10G Lan/OTU 2/OTU2e.

Lineside XFP port supports Tri-FEC for maximum network interoperability.

With different software configurations, one card can work as two 10G Muxpoders or one 10G Muxpodner with two 10G ports for network protection, etc.

Can be managed by CEO GUI(Graphics User Interface), integrated with management card.

10G OTN Muxponder Typical Application
Sintai's 10G Muxponder is a high-capacity function card for a multi-service provisioning platform (MSPP). One card is with 16 SFP ports and two XFP ports; max can support 20G traffic.

These SFP ports support any-service any-port configurability, can be configured to support OTU 1, OC3/12/48(STM-1/4/16), 100/1000Mbps full-duplex Ethernet, Fibre Channel FC-15/25/50/100/200/400, FICON and ESCON, bit transponder clients include DVB-ASI, SD-SDI, HD-SDI, DV6000, etc.

Two XFP ports can be independently configured for OC192, 10G Lan, OTU 2, or OTU 2e, can work independently to support two 10G traffic or configure as one working port and one protection port for one 10G traffic.

10G OTN Muxponder Technical Information
Lineside
Port Density2 x XFP ports, hot-pluggable
Data Rate9.95Gbps-11.1Gbps
ProtocolOC192/ 10G LAN/ OTU 2 / OTU 2e
Wavelength or Distance<80kmChoose XFP separately
Distance >80kmRequire Optical Amplifier and/or Dispersion Compensation
Client-side
Port Density16x SFP ports, hot-pluggable
Data Rate125Mbps-5Gbps
ProtocolsSTM-1/4/16; OC-3/12/48
Ethernet 100/1000Mbps
Fiber channel FC-15/25/50/100/200/400
Bit transponder clients: DVB-ASI, SD-SDI, HD-SDI, DV6000
CPRI date rate: 4.9152Gb/s, 3.072Gb/s, 2.4576Gb/s, 1.2288 Gb/s, 0.6144 Gb/s
Wavelength or Distance(<80km)Choose SFP separately
Distance >80kmRequire Optical Amplifier and/or Dispersion Compensation
Operating Conditions
Operation Temperature-10 to +60 °C
Storage Temperature-40 to +70℃
Humidity5 to 85% non-condensing
Mechanical
1RU 19” Rackmount44x 437 x 250 (H x W x D, mm)
Power Consumption<80W




There are many wdm optical transceivers supplier, but we are one of the best choices for you.
