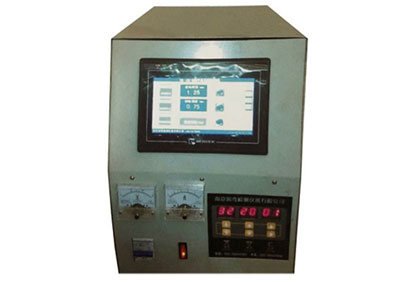

RQ-120-B Automatic CNC EDM Notch

Price: 8-2 million

"RQ-120-B Electric Pulse Automatic CNC EDM notches" is a precise instrument specially developed by Nanjing BKN Automation System Co., Ltd. for making inspection sample bars. It can be processed by controlled electric sparking method. It can be used to make longitudinal and transverse standard artificial grooves, rectangular blocks with equal depths and circular holes with equal depths on the inner and outer walls of steel tubes and bars.

RQ-120-B Automatic CNC EDM Notch Cutter Introduction

The core part of the equipment adopts high-quality imported components, using modern advanced digital control and servo technology, the wound-making process is fully automated, with high processing accuracy,fast speed, simple operation and the performance is at the international leading level. The whole instrument is portable, easy to carry, and has low requirement for the environment of steel pipe, bar and pipe carving.

Has the following features:

1) providing controllable electrical pulse generation and modulation;

2) According to the input incision depth parameter, the incision process is precisely controlled by numerical control and servo system;

3) The electronic control system automatically controls the rise, fall and stop of the guide operating mechanism;

4) Control the output of the processing power supply;

5) Adjust the working state of the instrument, such as the processing voltage, current and the position of the operating mechanism, according to the requirements;

6) Real-time precision display of processing speed and engraved depth value;

7) With manual tool setting and automatic engraving function.

Operating mechanism

The mechanism includes CNC servo micro-special motor, precision screw, precision guide rail, electrode fixture and other devices. Under the control of the cutting machine, the cutter head can move up and down to realize precise conveying.

The magnetic seat ensures that the running mechanism is conveniently and reliably fixed on the sample bar to be processed.

Tool guide rod and tool

According to the requirement of engraving internal injury, the operating mechanism extends the engraved tool to the specified length through the guide rod.

The trauma tool is curved according to the outer diameter of the steel pipe, and the internal tool is made according to the inner diameter of the steel pipe to ensure uniform contact between the entire arc surface and the steel pipe.

RQ-120-B Automatic CNC EDM Notch Performance

input voltage	AC220V ±20% 50～60Hz
Input current	3A
Output Pulse Current	Max 3A
Output indication	Touch screen display
Transportation cycle	1-5000ms
blade width	0.2～1.5mm
blade length	1～50mm
Depth of cut	0.1～16mm
Bar specification range
Processing of artificial defects	Various specifications of outer diameter ≥5¢mm
on the outer surface of pipe rod	Various specifications of pipe inner diameter ≥15¢mm

Features of RQ-120-B Automatic CNC EDM Notch

Precision	Groove depth error ≤ 5% of groove depth
Groove width error ≤ 5% of blade thickness
Isometric rectangle block error ≤ block depth 5%
Reliable processing of equal-depth rectangular blocks and equal-depth flat ground holes on
the inner and outer walls of steel pipes: including equal-depth rectangular holes and
equal-depth flat bottom holes.
