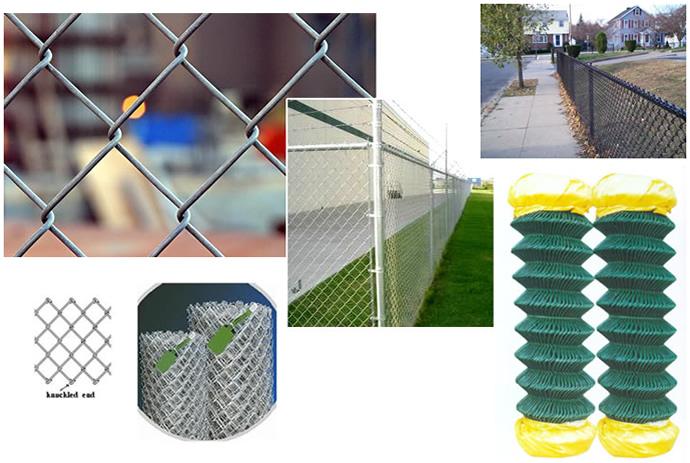

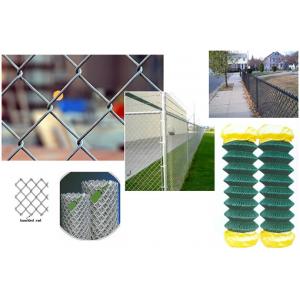

Galv. steel fence
Price: as to specifications
Features and Benefits:
Material Specifications:
- Zinc-coated steel framework that is thoroughly cleaned during the pre-treatment process, then color coated with a 3 mil minimum polyester layer for dual protection from corrosion.
- All galvanized wire has a 15 mil minimum extruded polyvinyl chloride coating for dual protection from corrosion and the elements.
- Fittings are made of galvanized steel with a 6 mil minimum of polymer coating for added protection.
- Treating components with both zinc and an electrostatically applied color coating helps them provide years of protection and security.
Material Specifications:
Chain-Link Fabric (not all meshes available in all gauges) | |
| Type: | Spectra polyvinyl chloride extruded over zinc-coated steel wire per ASTM F 668 Class 1 or Spectra polyvinyl chloride extruded and adhered to zinc-coated steel wire per ASTM F 668 Class 2a |
| Gauge: | 6, 9, 11, 12, and 14 gauge galvanized core wire |
| Mesh: | 3/8", ½", 5/8", 1", 1-1/4", 1-3/4", 2" and 2-1/4" |
| Heights: | 3',42",4',5', 6', 7', 8', 10', 12', 16' and 20' |
| Selvage: | Knuckled top and bottom up to 5' high, twisted and knuckled 6' to 20' high, except 1-1/4" mesh and smaller knuckled top and bottom |
| Colors: | Forest Green, Midnight Black, Sierra Brown |
| Framework: | |
| Type 2: | Spectra polyester resin, 3 mils minimum, over galvanized steel ASTM F 1043, Group 1C, with a minimum yield strength of 50,000 PSI. Protective coating per ASTM F 1043, external coating Type B, zinc with organic overcoat, 0.9 ounces per square foot minimum zinc coating with chromate conversion coating and verifiable polymer film |
| Colors: | Forest Green, Midnight Black, SierraBrown |
| Top Rail | |
| Type 2: | 1-5/8" O.D. Spectra DQ 40 pipe (0.111" wall thickness, 1.83 lb./ft.) |
| Line Posts | |
| Type 2: | 2-3/8" O.D. Spectra DQ 40 pipe (0.130" wall thickness, 3.12 lb./ft.) |
| Terminal Posts | |
| Type 2: | 2-7/8" O.D. Spectra DQ 40 pipe (0.160" wall thickness, 4.64 lb./ft.) |
| Swing Gates | |
| Fabric: | same mesh and gauge as chain-link selected |
| Framework: | 1-5/8" O.D. for gates up to 6' high or less 1-7/8" O.D. for gates over 6' high |
| Fittings | |
| Tension and Brace Bands: | Polymer coating, 6 mils minimum, over hot-dipped galvanized pressed steel |
| Caps, Eye Tops, Rail Ends: | Polymer coating, 6 mils minimum, over hot-dipped galvanized pressed steel |
| Sleeves: | Polymer coating, 6 mils minimum, over hot-dipped galvanized steel |
| Tie Wires: | Polymer coating, 6 mils minimum, over zinc-coated steel wire |
