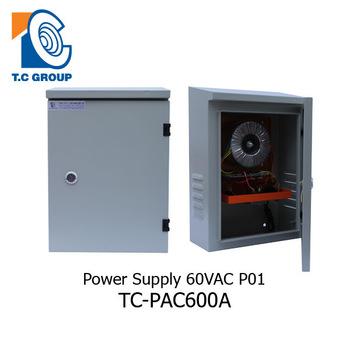

Power Supply
Price: 1$-100$/pcs
Specifications- Dimension:29.5x45x10.5cm
- Output connector:Terminal block
- High waterproof coating
- High shock resisstant case
Features:
- Output connector:Terminal block
- High waterproof coating
- High shock resisstant case
Features:
- Outdoor Iron Shell - Portable type 6A, 8A, 10A, 15A
- Non-standby Power Supply
- Performance Characteristic
- High performance linear transformer (lamination)
- Input and output protection, lightning surge protection
- Current limited output and short-circuit protection
- Automatic restart upon removal of short
- Field selectable output voltage
- Powder coated enclosure for outdoor applications
- Pole and wall mount installations
- Easy reading ammeter
- Durable LED indicators
- Embedded Power Inserter
| Item | Unit | Forward |
| Frequency | MHz | 5-862 |
| Input voltage | AC | 184 V~ 240 V |
| Output voltage | AC | 60v ± 5% |
| Waveform | Sine wave | |
| Protection | Current limited | |
| Max output current | Sum of all output current must be under the MAX current | |
| Short circuit current | A | 150% of maximum current rating |
| Flatness | dB | ±0.5dB |
| Return loss | dB | >15 |
| Return time | S | 25 ±5 |
| Finish | Powder coated | |
| Material | Cold rolled steel plate | |
| Environmental Operating temperature | °C | -40°C to 55°C / -40°F to 131°F |
| Operating humidity | 0 to 95% non-condensing |
